(35.726.09[05]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS)

Запчасти Case 580SN WT (35.726.09[05]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

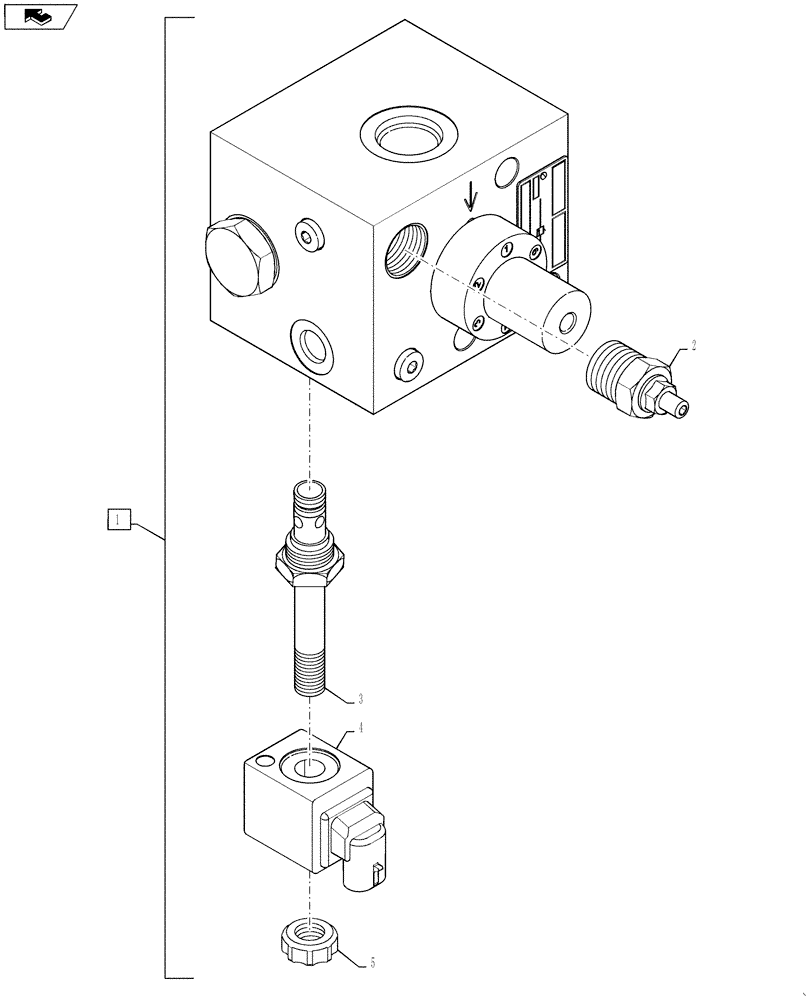

Схема запчастей Case 580SN WT - (35.726.09[05]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
4
home
5
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247110

VALVE

Auxiliary Uni-Directional; Incl. 2 - 5

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

9970180

SOLENOID VALVE

1шт.

4

84478803

COIL

Solenoid With Connector

1шт.

5

9970384

RING NUT

Ring

1шт.
