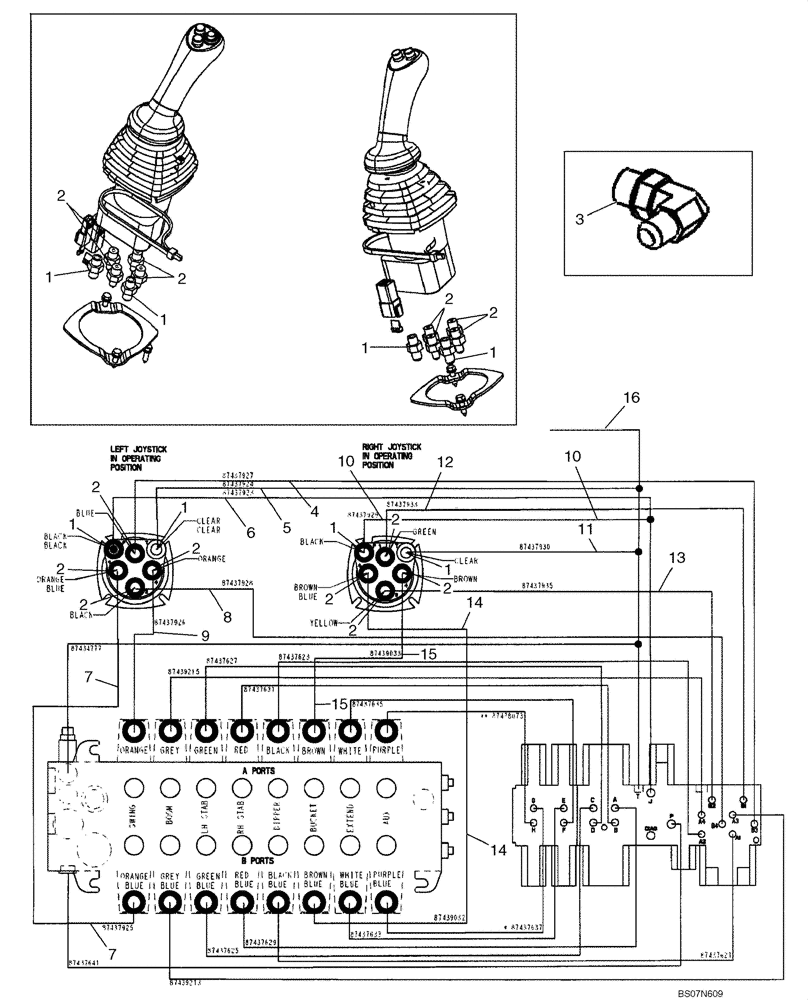

Запчасти Case 580SN WT (35.726.09[04]) - HYDRAULICS - PILOT CONTROL JOYSTICKS (35) - HYDRAULIC SYSTEMS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 237-6006 O-Ring

4шт.

2

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

8шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 237-6006; Installs in Hydraulic Tank for Pilot Return

1шт.

4

87437927

HYDRAULIC HOSE,6.4mm ID x 1295mm L

1295 mm (51 in); LH Joystick No. 1 to Selector Valve B3

1шт.

5

87437924

HYDRAULIC HOSE,9.5mm ID x 1000mm L

1000 mm (39-3/8 in); LH Joystick Tank to Pressure Reducing Valve T

1шт.

6

87437923

HYDRAULIC HOSE,9.5mm ID x 1035mm L

1035 mm (40-3/4 in); LH Joystick Pressure to Pressure Reducing Valve J

1шт.

7

87437925

HYDRAULIC HOSE,6.4mm ID x 1075mm L

1075 mm (42-3/8 in); LH Joystick No. 2 to Swing Port B

1шт.

8

87437928

HYDRAULIC HOSE,6.4mm ID x 1270mm L

1270 mm (50 in); LH Joystick No. 3 to Selector Valve B4

1шт.

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

Used With Ref 4 - 8

1шт.

9

87437926

HYDRAULIC HOSE,6.4mm ID x 825mm L

825 mm (32-1/2 in); LH Joystick No. 4 to Swing Port A

1шт.

10

87437929

HYDRAULIC HOSE,9.5mm ID x 1105mm L

1105 mm (43-1/2 in); RH Joystick Pressure to Pressure Reducing Valve J

1шт.

11

87437930

HYDRAULIC HOSE,9.5mm ID x 1345mm L

1345 mm (53 in); RH Joystick Tank to Pressure Reducing Valve T

1шт.

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

Hose Guard, 28 ID x 400 mm long; Used With Ref 10, 11

1шт.

12

87437933

HYDRAULIC HOSE,6.4mm ID x 1185mm L

1185 mm (46-11/16 in); RH Joystick No. 1 to Selector Valve B1

1шт.

13

87437935

HYDRAULIC HOSE,6.4mm ID x 1175mm L

1175 mm (46-5/16 in); RH Joystick No. 3 to Selector Valve B2

1шт.

14

87439032

HYDRAULIC HOSE,6.4mm ID x 1090mm L

1090 mm (42-15/16 in); RH Joystick No. 2 to Bucket Port B

1шт.

15

87439033

HYDRAULIC HOSE,6.4mm ID x 915mm L

915 mm (36-1/32 in); RH Joystick No. 4 to Bucket Port A

1шт.

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

Hose Guard, 28 ID x 400 mm long; Used With Ref 12 - 15

1шт.

16

87452405

HYDRAULIC HOSE,3/8" mm ID x 1520mm L

1520 mm (59-7/8 in); Pressure Reducing Valve T to, Serial Range: T-Tank

1шт.

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

HOSE GUARD, 19 ID x 450 mm long; Used With Ref 16

1шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

87440837

87440837

HYD TUBE

1шт.

87437635

87437635

HYD TUBE

1шт.

87437623

87437623

TUBE,.25" OD

1шт.

87437631

87437631

TUBE,.25" OD

1шт.

87437627

87437627

HYD TUBE

1шт.

87439215

87439215

HYD TUBE

1шт.

84252987

84252987

HYD TUBE,547mm L

1шт.

87437641

87437641

TUBE,.375" OD

1шт.

87439213

87439213

HYD TUBE

1шт.

87437625

87437625

HYD TUBE

1шт.

87437629

87437629

HYD TUBE

1шт.

87437633

87437633

HYD TUBE

1шт.

87440835

87440835

HYD TUBE

1шт.

87437621

87437621

TUBE,.25" OD

1шт.
