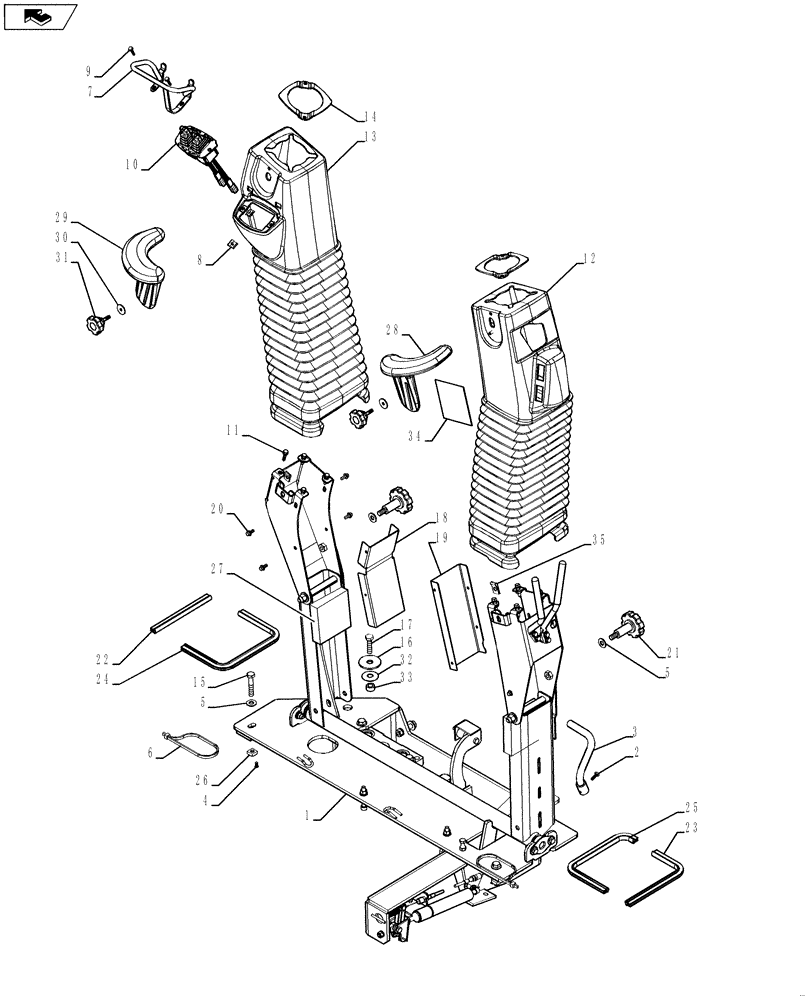

Запчасти Case 580SN WT (35.726.09[01]) - CONTROL, TOWER STRUCTURE (35) - HYDRAULIC SYSTEMS

1

NS

NOT SERVICED

See Fig 35.726.09 (03)

1шт.

2

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

1шт.

3

87427775

ROD

1шт.

4

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

7

87310085

SELF-TAP SCREW,HWH, M10 x 25.4mm

2шт.

8

87565604

NUT,0.250" ID

2шт.

9

87307656

GUARD

1шт.

10

87303182

SWITCH ASSY

Stabilizer Switch; Outrigger Switch

1шт.

11

87608777

BOLT,Hex, M6 x 30, Cl. 10.9

8шт.

12

87309924

BOOT

1шт.

13

87309923

BOOT

1шт.

14

87435372

RETAINING PLATE,83mm ID, 103mm L

2шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

16

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1шт.

17

87450914

BOLT,Hex, M10 x 40, Cl. 8.8

2шт.

18

87431301

SHIELD

1шт.

19

87431300

SHIELD

1шт.

20

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

8шт.

21

87437688

KNOB

2шт.

22

87433008

RUBBER SEAL,183mm L

1шт.

23

87433007

RUBBER SEAL,275mm L

1шт.

24

87433006

RUBBER SEAL,428mm L

1шт.

25

87433005

RUBBER SEAL,335mm L

1шт.

26

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

27

87425696

FOAM,Pad

2шт.

28

87437366

ARMREST

1шт.

29

87437369

ARMREST

1шт.

30

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

31

87437689

KNOB

2шт.

32

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

1шт.

33

87440381

SPACER,11.1mm ID x 19.05mm OD x 9.5mm Thk

1шт.

34

87305413

WARNING DECAL

1шт.

35

833-40406

NUT,M6, U

2шт.
