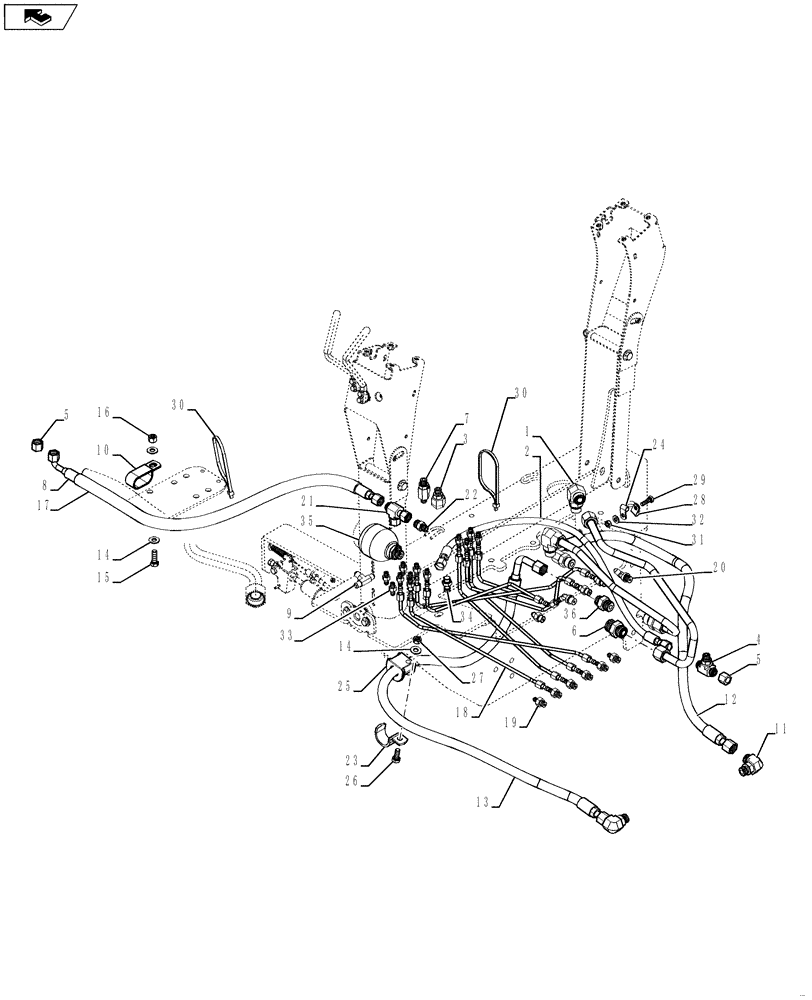

Запчасти Case 580SN WT (35.726.08[05]) - HYDRAULICS - PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

3

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

2шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

84405440

HYDRAULIC HOSE,6.3mm ID x 742mm L

Reducing Valve Pressure to Backhoe Valve

1шт.

5

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

87331950

CAP ASSY.,Hex, 11/16"-16

1шт.

8

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

3шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

11

84514724

HOSE ASSY.,10mm ID x 870mm L

Return to Manifold

1шт.

12

218-593

TEE,9/16"-18, 37 Degree

1шт.

13

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

14

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

2шт.

15

84328810

HOSE ASSY.,12.5mm ID x 899mm L

Check Valve to Dump Valve

1шт.

16

84399174

HOSE ASSY.,10mm ID x 1285mm L

Swing Cylinder to Dump Valve

1шт.

17

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

18

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

84249061

HOSE PROTECTION,19mm ID x 820mm L

Hose

1шт.

21

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

2шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

9шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

2шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Swivel Run Tee

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

27

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

1шт.

28

D74182

GROMMET,3/4" ID x 1.46" L

1шт.

29

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

31

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

32

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

33

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

34

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

35

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

12шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

36

86596853

QUICK MALE COUPLING,9/16"-18

1шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

87425225

ACCUMULATOR,0.16L

1шт.
