(35.726.07) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS)

Запчасти Case 580SN WT (35.726.07) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS) (35) - HYDRAULIC SYSTEMS

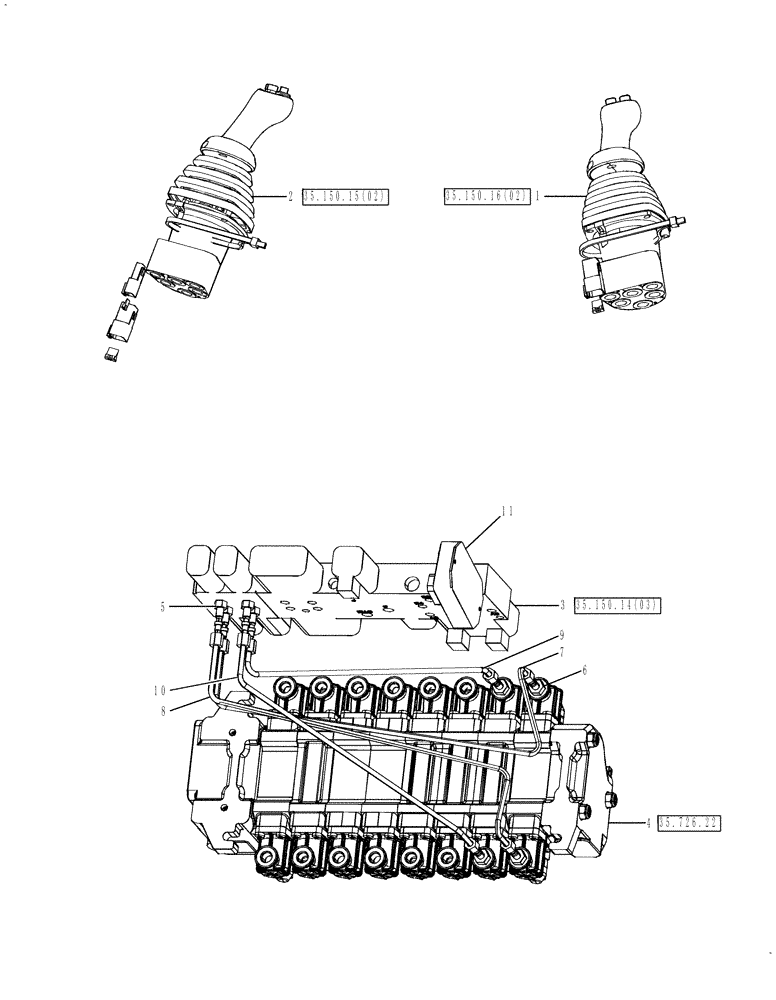

Схема запчастей Case 580SN WT - (35.726.07) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS) (35) - HYDRAULIC SYSTEMS
6
5
11
35.150.15(02)
9
3
35.150.16(02)
8
4
1
10
35.726.22
35.150.14(03)
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685955

JOYSTICK

1шт.

2

87685952

JOYSTICK

1шт.

3

87434621

CONTROL VALVE

1шт.

4

84214062

PILOT VALVE

580N

1шт.

4

84269980

PILOT VALVE

580SN, 580SN WT

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

4шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

4шт.

7

87440837

HYD TUBE

Reducing Valve to Aux. A

1шт.

8

87440835

HYD TUBE

Reducing Valve to Ext. A

1шт.

9

87437635

HYD TUBE

Reducing Valve to Aux. B

1шт.

10

87437633

HYD TUBE

Reducing Valve to Ext. B

1шт.

11

84266025

MODULE

Pilot, 8 Spool

1шт.
