(35.726.06) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER W/ AUX HYDS) (580SN, 580SN WT, 590SN)

Запчасти Case 580SN WT (35.726.06) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER W/ AUX HYDS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

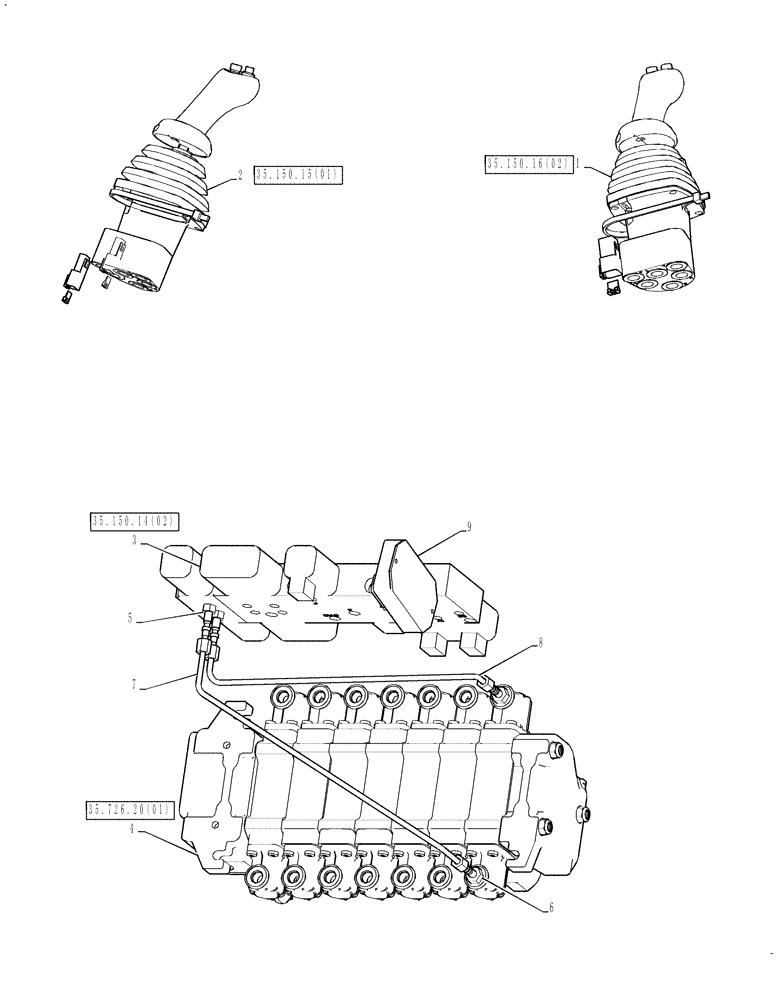

Схема запчастей Case 580SN WT - (35.726.06) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER W/ AUX HYDS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS
35.150.14(02)
8
6
1
35.150.16(02)
3
5
4
35.726.20(01)
35.150.15(01)
9
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685956

JOYSTICK

1шт.

2

87685952

JOYSTICK

1шт.

3

85827471

HYDRAULIC VALVE

2шт.

4

84269981

PILOT VALVE

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

1шт.

7

87438012

HYD TUBE

1шт.

8

87438015

HYD TUBE

1шт.

9

84254545

MODULE

Pilot, 7 Spool

1шт.
