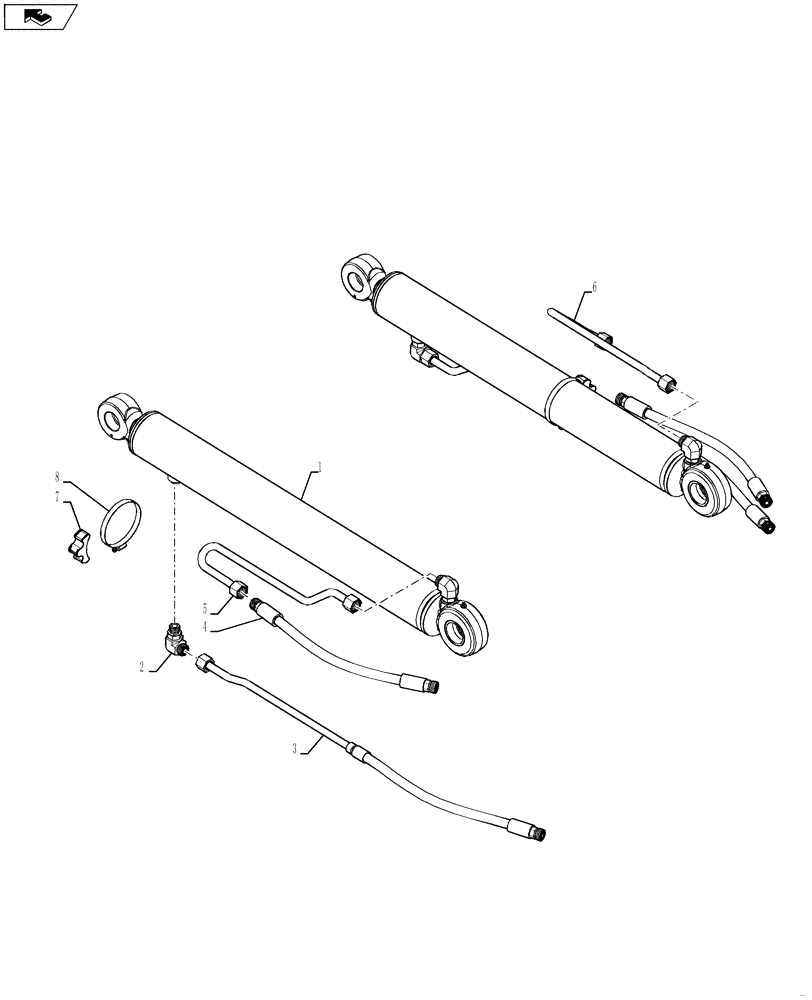

Запчасти Case 580SN WT (35.701.12) - HYDRAULICS - LOADER LIFT CYLINDER (580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

84210940

HYDRAULIC CYLINDER,47.6mm Rod, 740mm Stroke

2шт.

1

84210940R

REMAN-HYD CYLINDER

580SN WT WIDE TRACK, 590SN, Both LOADER BACKHOE TIER 3, Assy, HYDRAULICS

2шт.

1

84210940C

CORE-HYD CYLINDER

Return Number

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

4шт.

3

84296008

HYD TUBE

2шт.

4

84351615

HOSE ASSY.,12.5mm ID x 526mm L

2шт.

5

84295087

HYD TUBE

1шт.

6

84295697

HYD TUBE

1шт.

7

84296627

SECURING STRAP

2шт.

8

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

2шт.
