Запчасти Case 580SN WT (35.701.08) - HYDRAULICS - VALVE, LOADER CONTROL (3 SPOOL, MECHANICAL CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

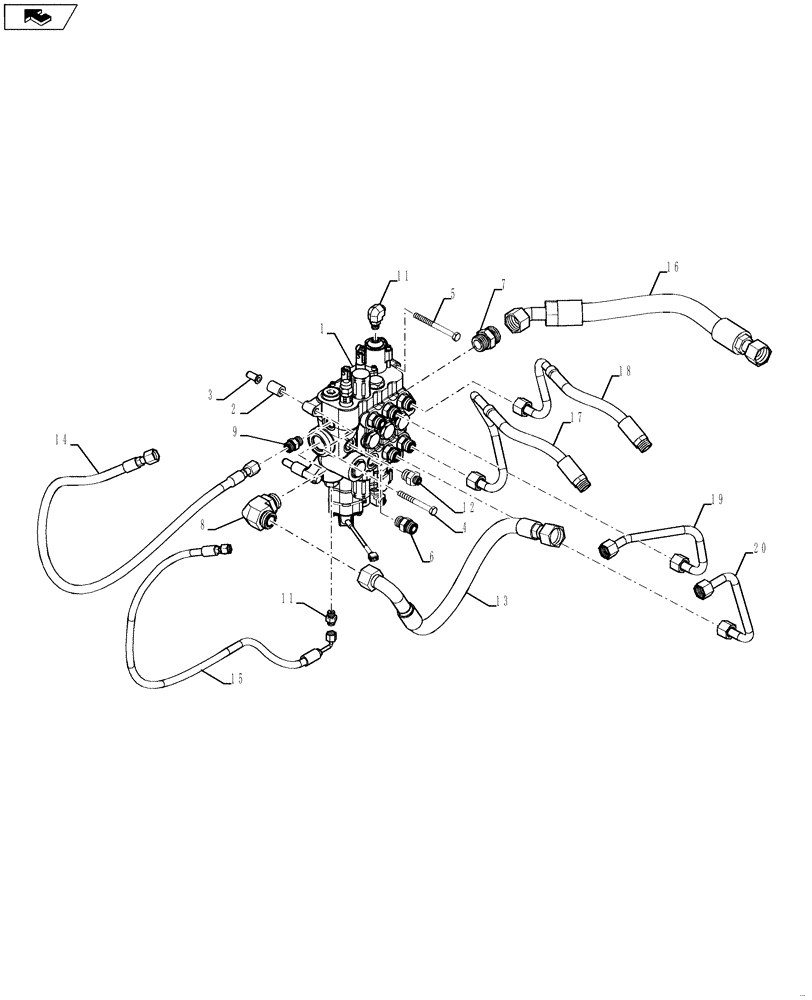

Схема запчастей Case 580SN WT - (35.701.08) - HYDRAULICS - VALVE, LOADER CONTROL (3 SPOOL, MECHANICAL CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS
17
8
16
5
7
19
12
1
14
3
2
20
15
18
13
6
9
4
11
home
11

Артикул

Название

Примечание

Количество

1

84218283

VALVE

1шт.

2

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

Loader Valve Mounting

3шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

6

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

6шт.

7

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

3шт.

8

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.

9

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

10

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

11

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

2шт.

12

84139327

HYD CONNECTOR

1шт.

13

84245419

HOSE ASSY.,19.05mm ID x 678.4mm L, SAE 100R16

Valve Inlet

1шт.

14

84358585

HOSE ASSY.,12.5mm ID x 1200mm L

Steering Pressure

1шт.

15

84280705

HOSE ASSY.,6.3mm ID x 1275mm L

Steering Pilot

1шт.

16

84278155

HOSE ASSY.,25mm ID x 640mm L

, Serial Range: Valve-Filter

1шт.

17

84293158

TUBE

4 in 1 Port B

1шт.

18

84293160

TUBE

4 in 1 Port A

1шт.

19

84293154

TUBE

Loader Lift Port A

1шт.

20

84293149

TUBE

Loader Lift Port B

1шт.

Выбрано товаров: 20
