(35.701.06[02]) - HYDRAULICS - LOADER, 3 SPOOL (580N WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN WITHOUT PILOT CONTROLS)

Запчасти Case 580SN WT (35.701.06[02]) - HYDRAULICS - LOADER, 3 SPOOL (580N WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN WITHOUT PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

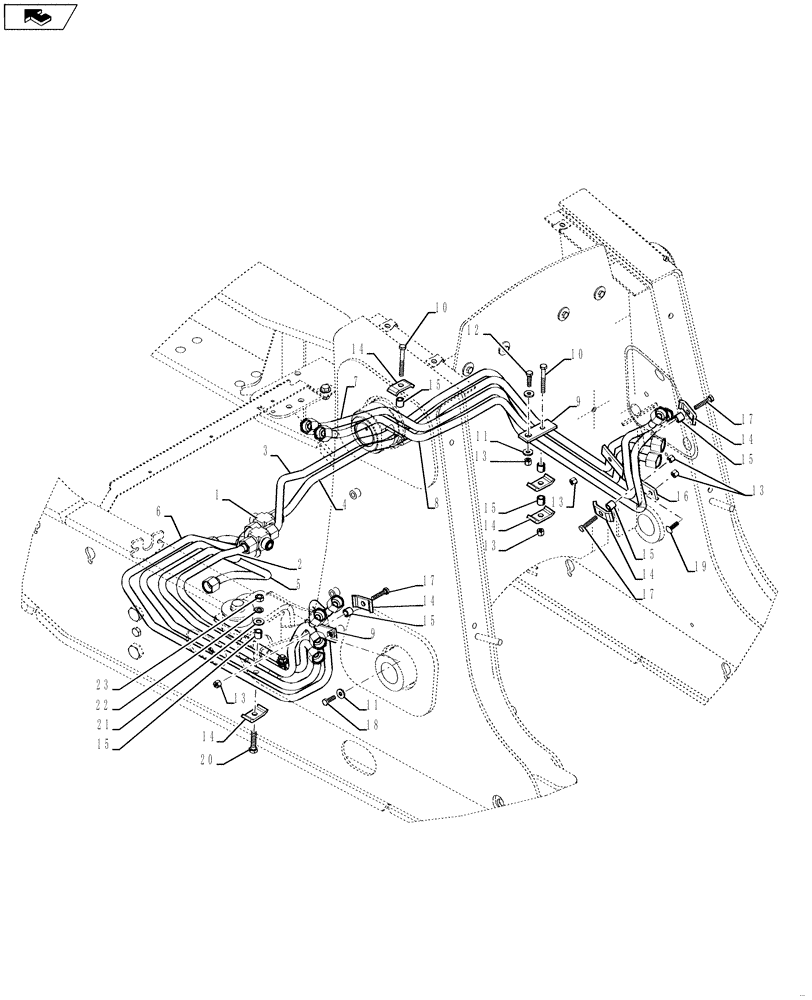

Схема запчастей Case 580SN WT - (35.701.06[02]) - HYDRAULICS - LOADER, 3 SPOOL (580N WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN WITHOUT PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
9
14
14
15
10
14
11
10
home
13
2
9
12
4
20
15
17
15
17
15
7
13
15
5
16
14
19
6
23
22
13
21
18
15
1
14
8
3
17
13
13
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84350086

HYD TUBE

1шт.

2

84350091

HYD TUBE

1шт.

3

84350093

HYD TUBE

1шт.

4

84350095

HYD TUBE

1шт.

5

84294676

RIGID TUBE

1шт.

6

84294679

RIGID TUBE

1шт.

7

84293011

TUBE

1шт.

8

84293009

TUBE

1шт.

9

84293019

BRACKET

2шт.

10

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

10

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

11

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

3шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

13

16104121

NUT,M8 x 1.25, Cl 10

7шт.

14

D138055

CLAMP

11шт.

15

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

9шт.

16

84293020

BRACKET

1шт.

17

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

3шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

20

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

22

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

23

86500689

NUT,M10 x 1.5, Cl 10

2шт.

24

87338053

4 WAY CONNECTION

Not Referenced On Art; Between Ref. 1 and 4, and Between Ref. 2 and 3

2шт.
