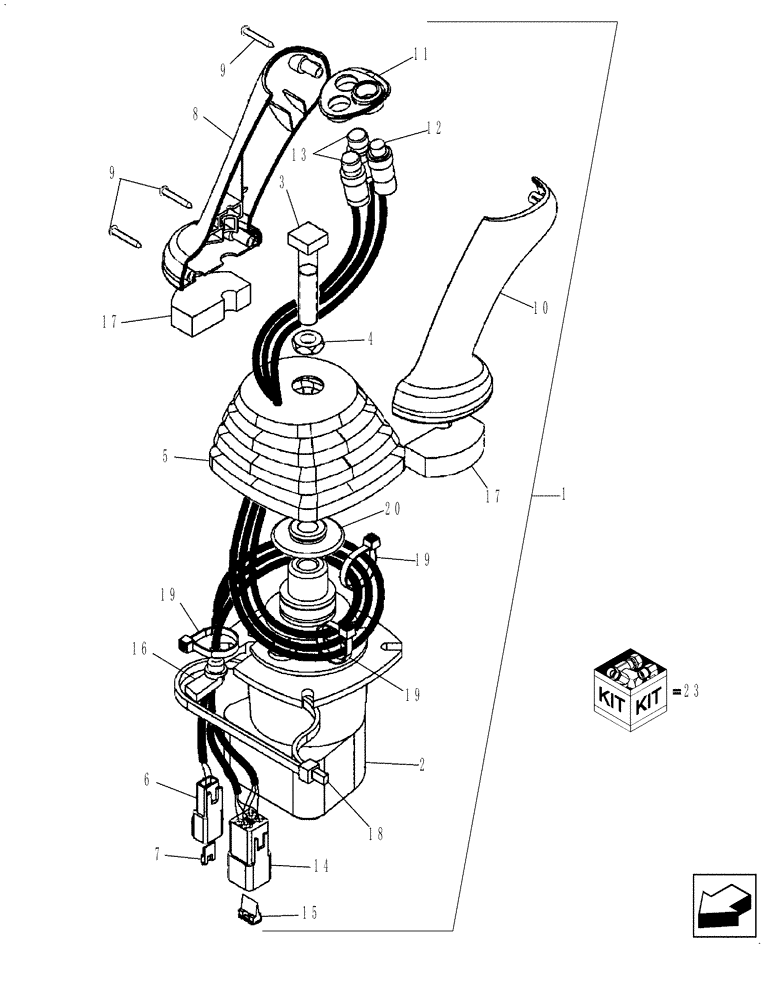

Запчасти Case 580SN WT (35.150.15[02]) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS (35) - HYDRAULIC SYSTEMS

1

87685952

JOYSTICK

Pilot Controls, LH; With Horn and Bi-Directional Buttons; Inc. Ref 2-20; Part Number Stamped On Valve Base

1шт.

2

87687141

PILOT VALVE

Includes 87473380, 87586772, 87586773

1шт.

2

87687141R

REMAN-HYD VALVE

Includes 87473380, 87586772, 87586773

1шт.

2

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

Square Head

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

Control Handle

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

225318C1

ELEC CONNECTOR,2 Pin

Connector

1шт.

8

87308838

HANDLE GRIP

Joystick Control

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

10

87308839

HANDLE GRIP

Joystick Control

1шт.

11

87435243

BEZEL

Switch Mounting

1шт.

12

87437372

SWITCH ASSY

Push Button Horn

1шт.

84492790

SERVICE KIT

Dual Aux Pilot Std.; Incl. Ref. 13, 14, 15; Also Incl. Fig. 35.726.17(03) Ref. 3, 10.

1шт.

13

84134639

SWITCH

Push Button Bi-Directional Auxiliary Hydraulic

2шт.

14

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

15

225353C1

WEDGE,Lock, Black

Connector

1шт.

16

87424267

GROMMET

Wire

1шт.

17

87435506

SEAL,52mmL

Pilot Control Handle, Lower

2шт.

18

87438046

CABLE TIE,375.9 mm L x 8mm W

CABLE STRAP

1шт.

19

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP Black

3шт.

20

87436225

RETAINER,12.5mm ID, 46mm OD

Control Boot

1шт.

21

87473380

GUIDE

Plunger Assy (Not Shown)

4шт.

22

87586772

PLATE

Spring (Not Shown)

4шт.

23

87586773

KIT

Set of 4 Return Springs

1шт.
