Запчасти Case 580SN WT (35.150.15[01]) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & UNI-DIRECTIONAL BUTTONS (35) - HYDRAULIC SYSTEMS

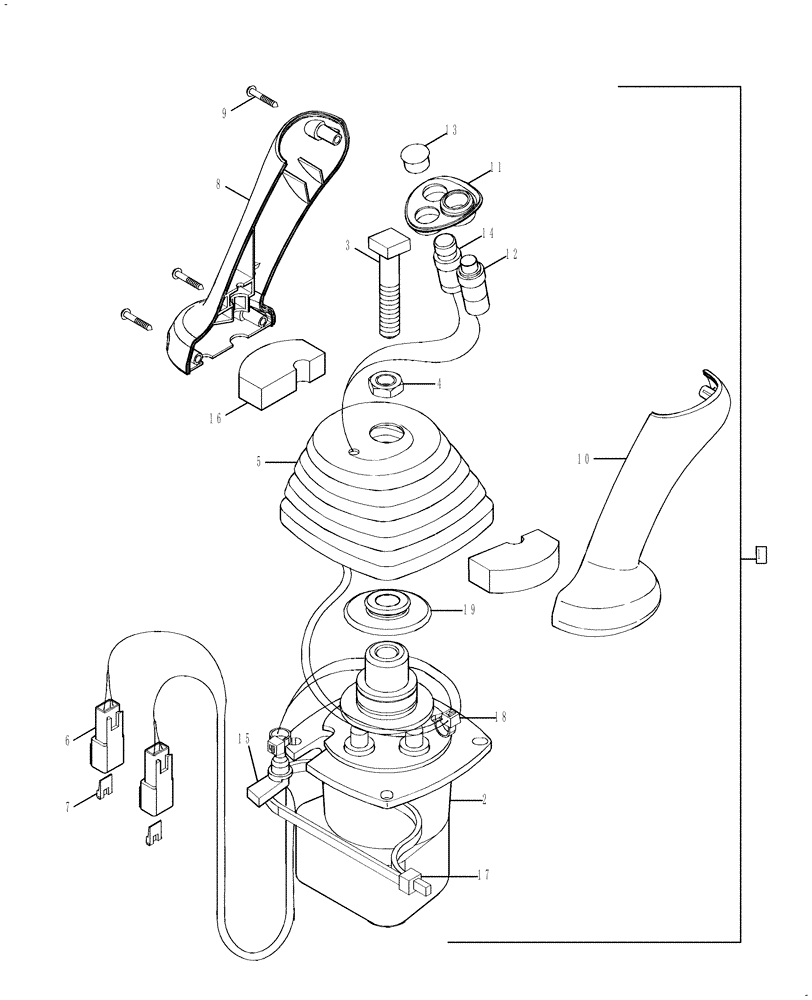

Схема запчастей Case 580SN WT - (35.150.15[01]) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & UNI-DIRECTIONAL BUTTONS (35) - HYDRAULIC SYSTEMS
18
14
2
15
9
11
16
6
19
7
8
4
10
5
3
13
1
17
12

Артикул

Название

Примечание

Количество

1

87685953

JOYSTICK

1шт.

2

87687141

PILOT VALVE

1шт.

2

87687141R

REMAN-HYD VALVE

Reman Pilot Valve

1шт.

2

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

7

225318C1

ELEC CONNECTOR,2 Pin

2шт.

8

87308838

HANDLE GRIP

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

10

87308839

HANDLE GRIP

1шт.

11

87435243

BEZEL

1шт.

12

87437372

SWITCH ASSY

1шт.

13

86625128

PLUG,Dome, .562" hole, Nylon

1шт.

84412151

SERVICE KIT

Uni-Aux Pilot Switch; Incl. Ref 14, 6 (Qty. 1), 7 (Qty. 1)

1шт.

14

87437373

SWITCH ASSY

1шт.

15

87424267

GROMMET

1шт.

16

87435506

SEAL,52mmL

2шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

19

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

Выбрано товаров: 22
