Запчасти Case 580SN WT (35.150.04) - VALVE SECTION - BACKHOE, BI-DIRECTIONAL (35) - HYDRAULIC SYSTEMS

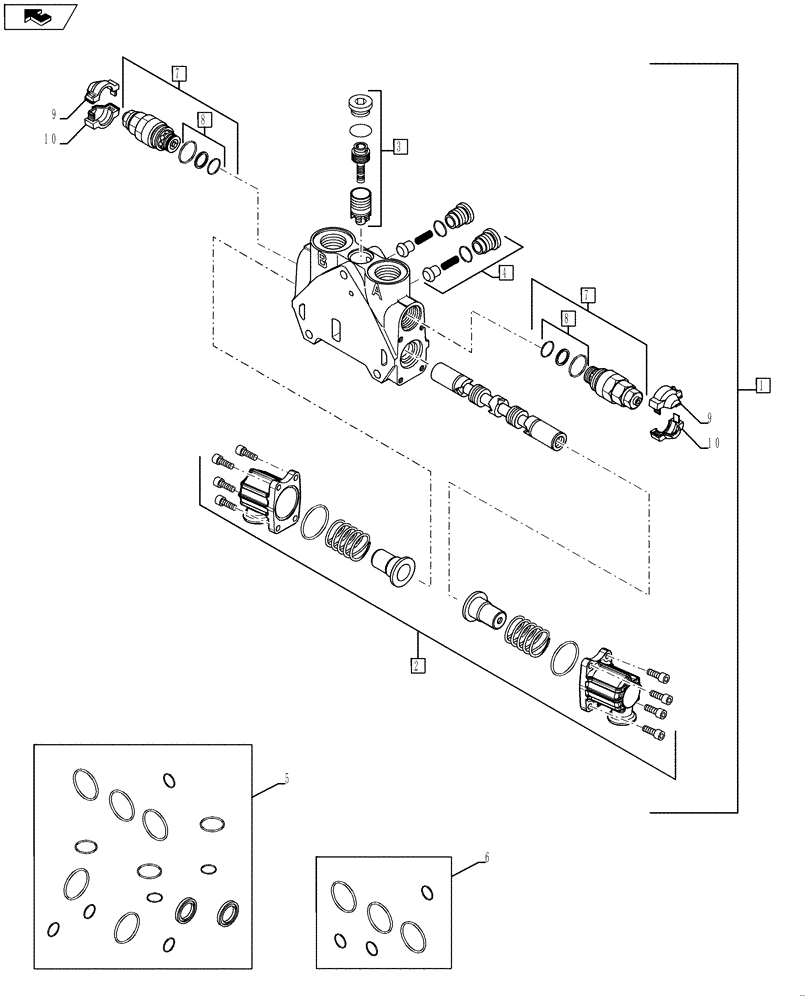

Схема запчастей Case 580SN WT - (35.150.04) - VALVE SECTION - BACKHOE, BI-DIRECTIONAL (35) - HYDRAULIC SYSTEMS
10
10
6
7
7
8
8
5
2
3
9
1
4
home
9

Артикул

Название

Примечание

Количество

1

84278691

HYD VALVE SECTION

1шт.

2

85826344

KIT,Operation

1шт.

3

85819378

KIT

1шт.

4

85811938

KIT,Check Valve

2шт.

5

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

6

85819148

SEAL KIT,Between Control Valve Sections

1шт.

7

85812115

VALVE PRESSURE RELIE

2шт.

8

85811933

SEAL KIT,Secondary Valve

2шт.

9

85811934

COVER,Half, Orange

1шт.

10

85811935

COVER,Half, Blue

1шт.

Выбрано товаров: 10
