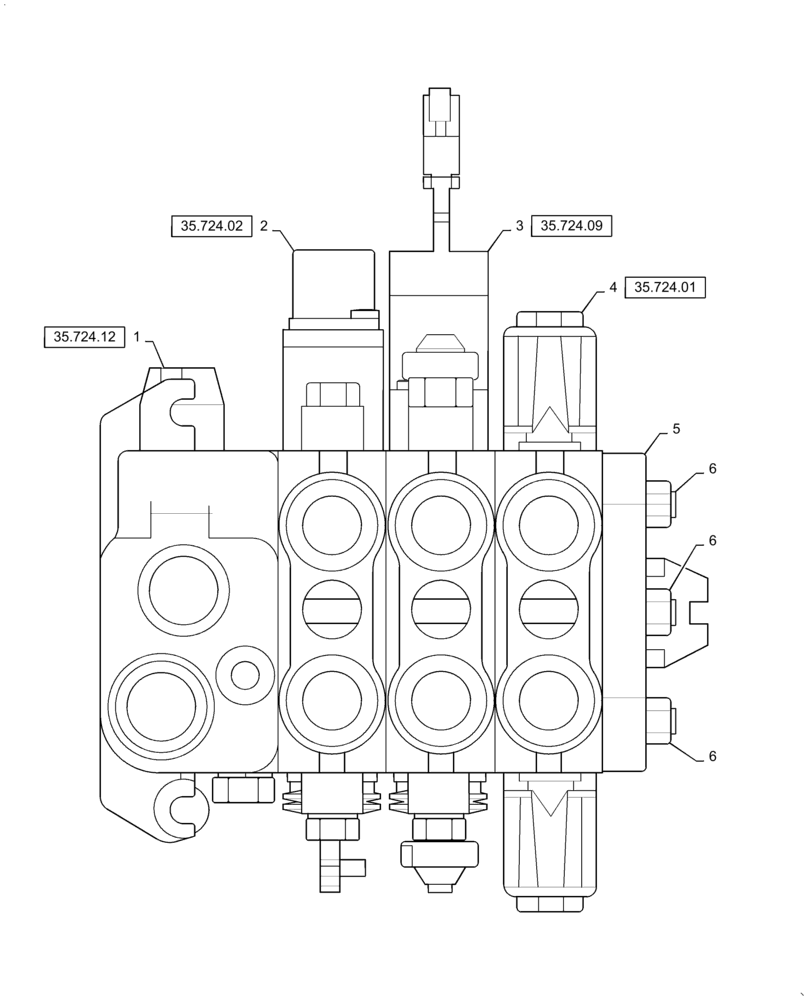

Запчасти Case 580SN WT (35.114.02) - VALVE - LOADER CONTROL, 3 SPOOL (PILOT CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

84219974

VALVE

580SN; Three Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below

1шт.

84219974R

REMAN-HYD VALVE

Reman 580SN; Three Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below

1шт.

84219974C

CORE-VALVE HYD

Core Return Number

1шт.

1

87751123

HYD VALVE SECTION

Inlet

1шт.

2

87751137

HYD VALVE SECTION

Boom

1шт.

3

84295100

HYD VALVE SECTION

Bucket

1шт.

4

87751147

HYD VALVE SECTION

Optional Auxiliary

1шт.

5

87330847

OUTLET

1шт.

6

85825474

THREADED TIE-ROD,M10 x 193mm L

3шт.
