Запчасти Case 580SN WT (35.106.02[01]) - HYDRAULICS - PUMP, EQUIPMENT (WITH POWER LIFT) (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

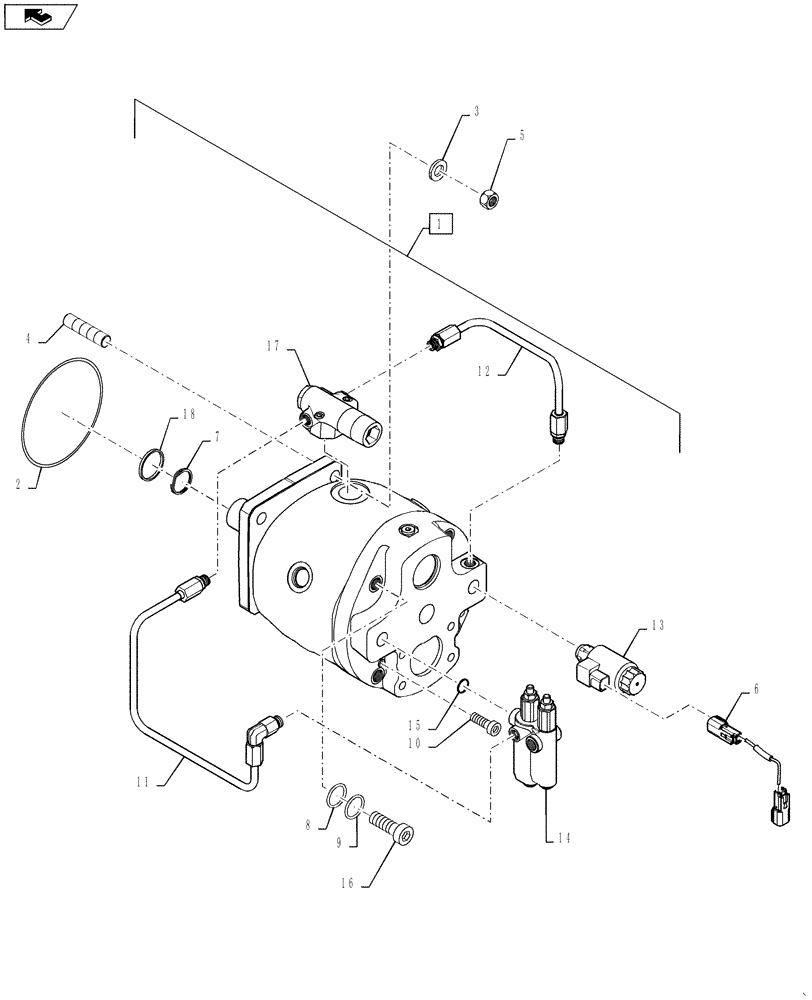

Схема запчастей Case 580SN WT - (35.106.02[01]) - HYDRAULICS - PUMP, EQUIPMENT (WITH POWER LIFT) (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS
7
16
8
10
17
11
2
home
13
5
12
6
3
9
14
18
15
1
4

Артикул

Название

Примечание

Количество

1

84218965

HYDRAULIC PUMP,71 CC

Incl. Ref 7 - 18

1шт.

1

84218965R

REMAN-HYD PUMP

1шт.

1

84218965C

CORE-HYDRAULIC PUMP

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

If Used (Not Shown)

4шт.

84419227

STUD

M12 x 1.25 x 50, 8.8

4шт.

5

825-11412

NUT,M12 x 1.25, Cl 8

4шт.

6

84292404

HARNESS

Suppressor Diode

1шт.

7

84312221

RING

1шт.

8

84312210

O-RING

Inside Pump

1шт.

9

84312220

O-RING

Inside Pump

4шт.

10

84312301

HEX SOC SCREW

4шт.

11

84499590

SERVICE KIT

Long Torque Control Tube

1шт.

12

84499592

SERVICE KIT

Short Torque Control Tube

1шт.

13

84312179

CONTROL VALVE

1шт.

14

84311934

CONTROL VALVE

1шт.

15

84312299

GASKET

1шт.

16

84312223

HEX SOC SCREW

4шт.

17

84311937

CONTROL VALVE

1шт.

18

84312204

SEALING RING

2шт.

Выбрано товаров: 21
