Запчасти Case 580SN WT (25.310.01[02]) - AXLE, FRONT DRIVE - PLANETARY HD ACP (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM

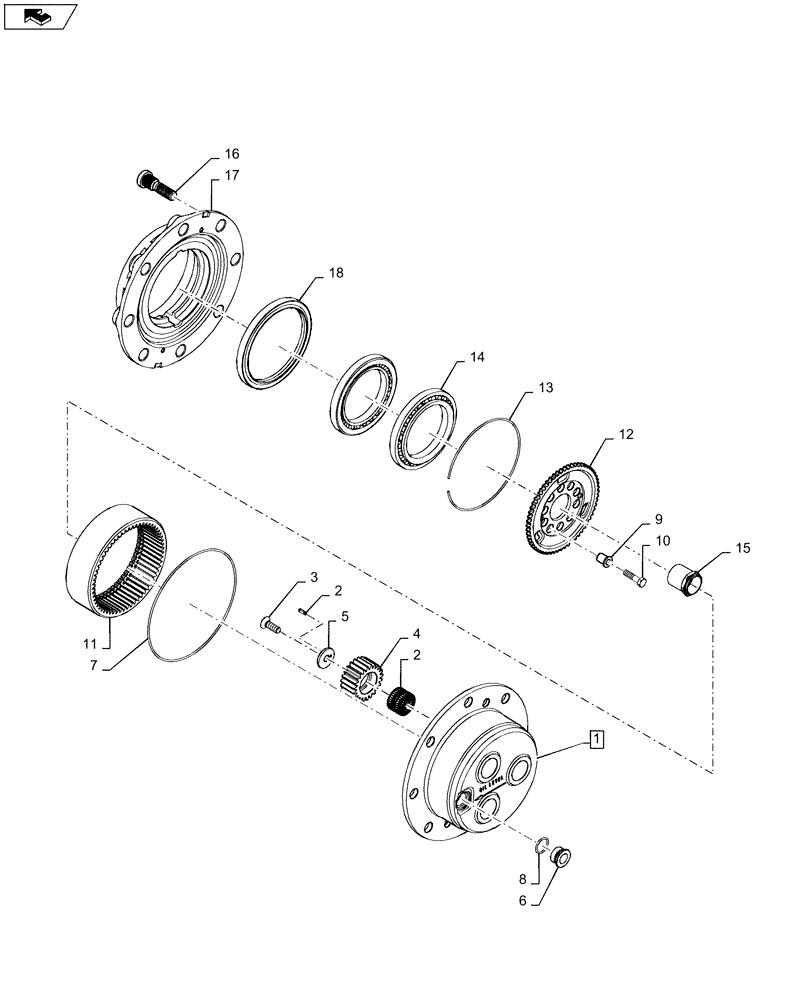

Схема запчастей Case 580SN WT - (25.310.01[02]) - AXLE, FRONT DRIVE - PLANETARY HD ACP (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM
16
17
13
2
14
6
3
15
9
18
2
8
7
4
5
1
11
12
10

Артикул

Название

Примечание

Количество

1

84249603

CARRIER

Includes Ref. 2 (Qty 3)

1шт.

2

84380206

NEEDLE ROLLER,4mm OD x 12mm L

207шт.

3

84273745

SCREW

3шт.

4

84183899

PLANETARY GEAR,23T

3шт.

5

84271320

RETAINER,13mm ID, 43.8mm OD

3шт.

6

84272055

PLUG,M30 x 2

1шт.

7

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

8

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

8шт.

10

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

8шт.

11

87748929

RING GEAR,60T

1шт.

12

84259703

GEAR,60T

1шт.

13

5165162

SNAP RING,M50, Int

1шт.

14

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

15

84316956

NUT,M45 x 1.5, 88.5mm L

1шт.

16

84264323

STUD,M18 x 1.5 x 71.2mm

8шт.

17

84297567

HUB

PIN, Planetary Drive

1шт.

18

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

13028524

SCREW,M8 x 20mm

Carrier Set Screw (Not Shown)

2шт.

Выбрано товаров: 19
