(25.300.02) - AXLE, FRONT DRIVE - SHAFTS, AXLE (580SN WT, 590SN)

Запчасти Case 580SN WT (25.300.02) - AXLE, FRONT DRIVE - SHAFTS, AXLE (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM

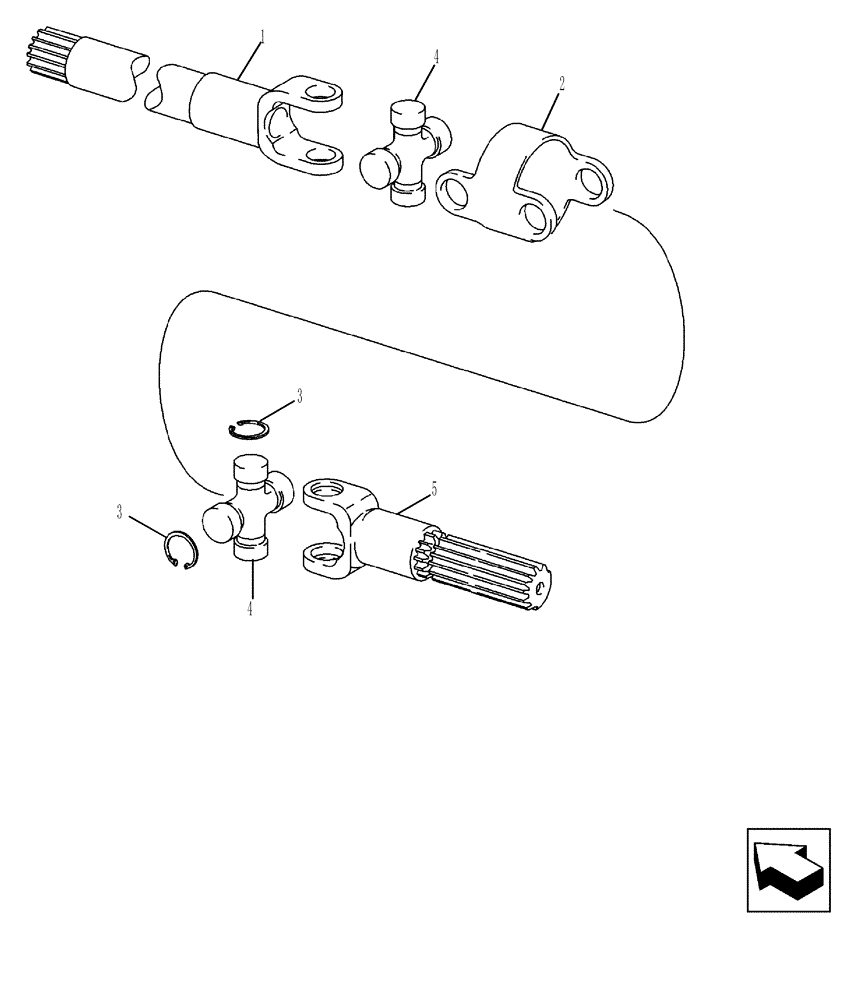

Схема запчастей Case 580SN WT - (25.300.02) - AXLE, FRONT DRIVE - SHAFTS, AXLE (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM
3
2
1
3
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84258436

HALF SHAFT,726mm L, 22T

22 Tooth

1шт.

2

84258437

YOKE

1шт.

3

301644

CIRCLIP,M30, Int

8шт.

4

84258439

U-JOINT SPIDER

2шт.

5

84316955

HALF SHAFT,225mm L, 12T

12 Tooth

1шт.

6

84316954

AXLE-SHAFT, ARTICULA,1023.5mm L

Inc 1-5

2шт.

Выбрано товаров: 6
