(25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT)

Запчасти Case 580SN WT (25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT) (25) - FRONT AXLE SYSTEM

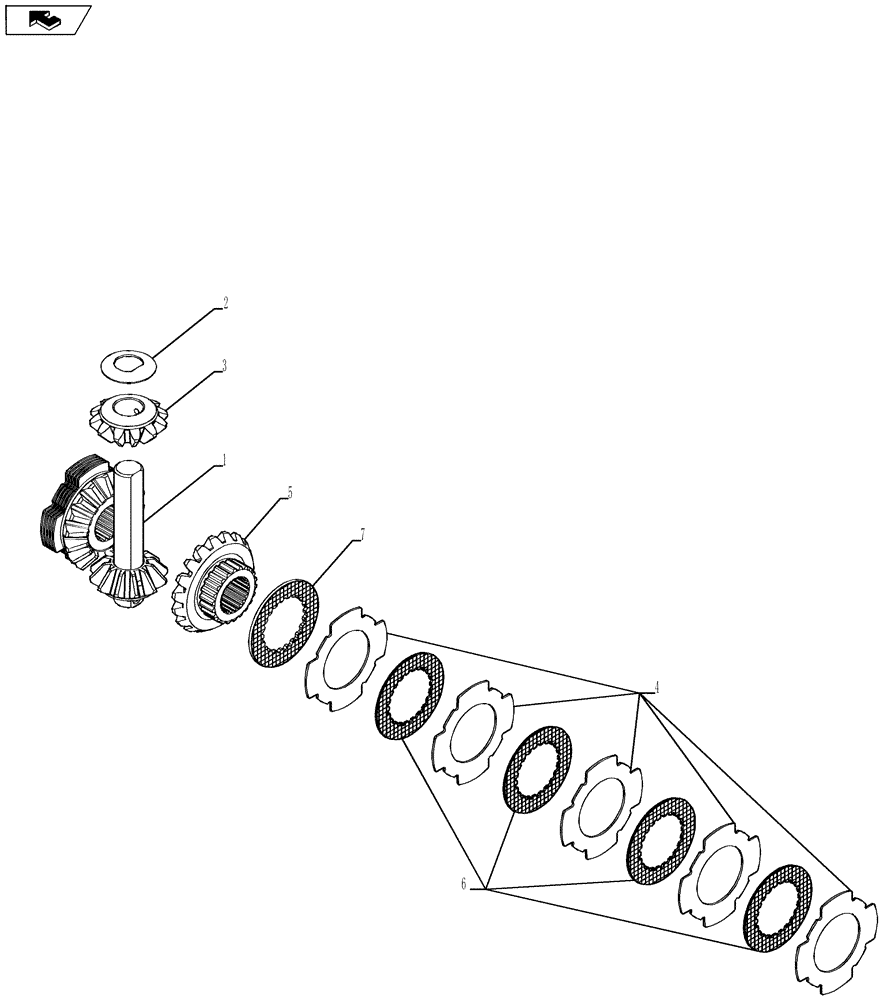

Схема запчастей Case 580SN WT - (25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT) (25) - FRONT AXLE SYSTEM
3
1
6
home
4
7
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84268545

PIN,21.9mm OD x 122.9mm L

1шт.

2

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

2шт.

3

87727552

BEVEL PINION,12T

2шт.

4

84225954

DISC,69.7mm OD x 1.5mm Thk

10шт.

5

NS

NOT SERVICED

Bevel Gear

2шт.

6

NS

NOT SERVICED

Clutch Disc, Thin

8шт.

7

NS

NOT SERVICED

Clutch Disc, Thick

2шт.
