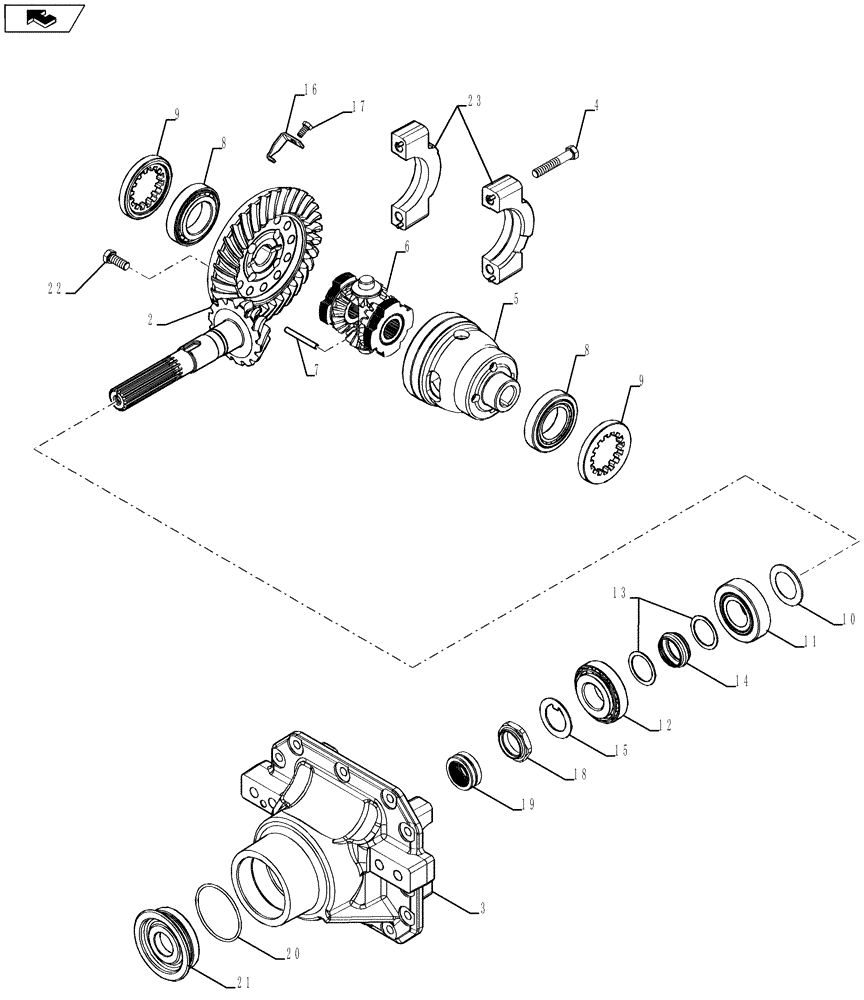

Запчасти Case 580SN WT (25.102.04[01]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT) (25) - FRONT AXLE SYSTEM

1

NS

NOT SERVICED

Assembly

1шт.

2

84299355

GEAR SET

1шт.

3

84299349

DIFFERENTIAL ASSY

1шт.

4

87015541

BOLT,Hex, M12 x 70, 10.9

4шт.

5

84275476

HOUSING

1шт.

6

84278738

DIFFERENTIAL ASSY

1шт.

7

84268547

PIN,6.99mm OD x 61.5mm L

1шт.

8

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

9

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

10

84299343

WASHER,41.5mm ID x 63mm OD x 2.5mm Thk

1шт.

11

84299345

ROLLER BEARING,41.28mm ID x 90mm OD x 30mm L

1шт.

12

87747982

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

1шт.

12

84557103

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

, Start Year: 21-JUL-14

1шт.

13

84311242

SPACER,40.45mm ID x 52mm OD x 1.65mm L

2шт.

14

84299341

SLEEVE,42.15mm ID x 50.5mm OD x 18.5mm L

1шт.

15

84161677

E-RING

1шт.

16

87748532

RETAINER

2шт.

17

84273742

BOLT,Hex, Lock, M8 x 1.25 x 16mm, Cl. 10.9

2шт.

18

84274691

NUT,M40 x 1.5

1шт.

19

84258508

SEAL,35mm ID x 52mm OD x 18.2mm Thk

1шт.

20

638-54825

O-RING,3.55mm Thk x 82.5mm ID, Cl 5, 75 Duro

1шт.

21

84318880

HOUSING

1шт.

22

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.
