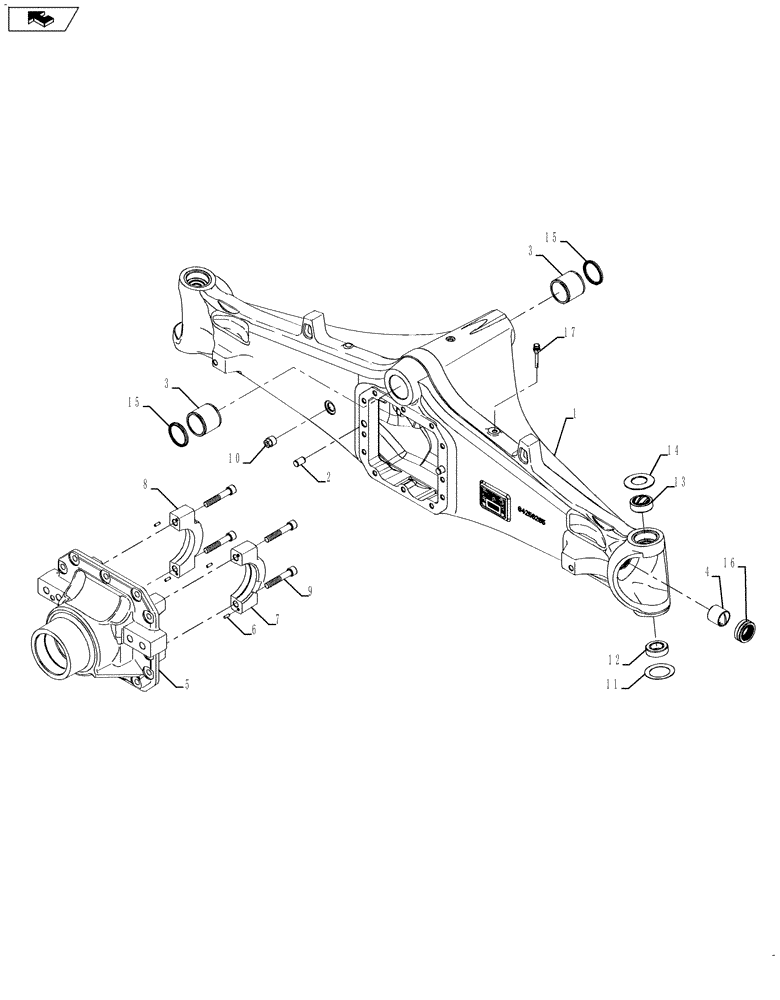

Запчасти Case 580SN WT (25.100.08[02]) - AXLE, FRONT DRIVE - HOUSING HD ACP (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM

1

84310708

AXLE

Heavy Duty ACP

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

2шт.

3

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

4

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

2шт.

5

84299349

DIFFERENTIAL ASSY

1шт.

6

4966244

PIN,5mm OD x 15mm L

4шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

84265310

SCREW,M12 x 70mm, Cl 12.9

4шт.

10

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

11

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

2шт.

12

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

13

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

2шт.

14

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

15

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

16

84266933

SEAL,35mm ID x 52mm OD x 18.5mm Thk

2шт.

17

84258517

BREATHER,M10 x 1

1шт.
