(88.100.90[12]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE

Запчасти Case 580SN WT (88.100.90[12]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE (88) - ACCESSORIES

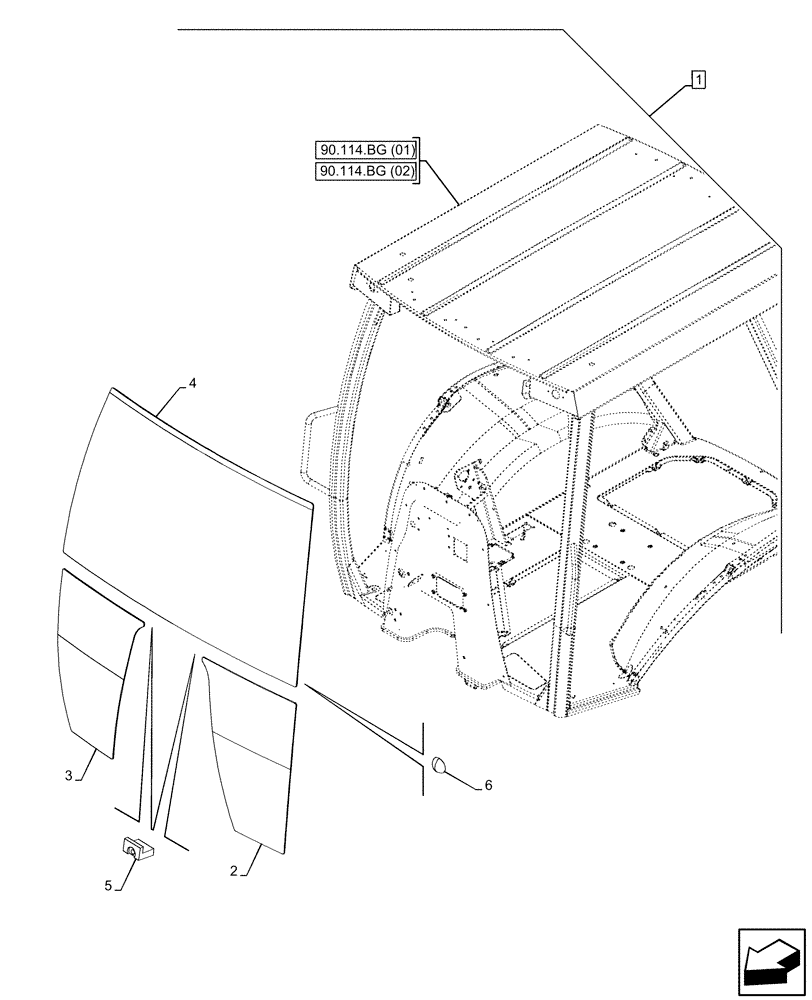

Схема запчастей Case 580SN WT - (88.100.90[12]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE (88) - ACCESSORIES
2
90.114.bg (02)
4
6
90.114.bg (01)
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605399

CONSTRUCTION DIA

Canopy, Conversion Wide, Incl 2 - 6

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84246307

CAB GLASS ASSY

LH

1шт.

3

84246308

CAB GLASS ASSY

RH

1шт.

4

84246306

GLASS

Windshield

1шт.

5

279482A1

CLAMP

2шт.

6

391827A1

SPACER,11.1mm D

18шт.
