(88.100.90[11]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE

Запчасти Case 580SN WT (88.100.90[11]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE (88) - ACCESSORIES

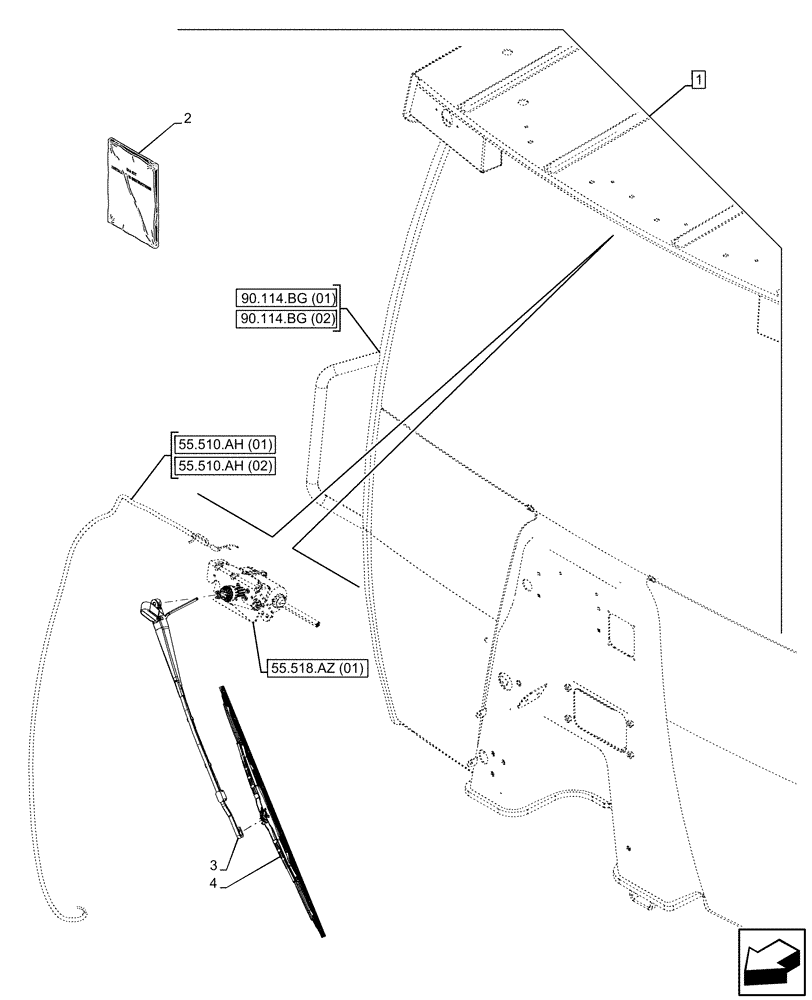

Схема запчастей Case 580SN WT - (88.100.90[11]) - DIA KIT, CONVERSION KIT, CANOPY, WIDE (88) - ACCESSORIES
1
55.510.ah (02)
90.114.bg (01)
2
55.510.ah (01)
90.114.bg (02)
55.518.az (01)
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605399

CONSTRUCTION DIA

Canopy, Conversion Wide, Incl 2 - 4

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47624950

INSTRUCTION

1шт.

3

84562946

WIPER ARM,Single, 550mm

1шт.

4

87669761

WIPER BLADE,600mm L

1шт.
