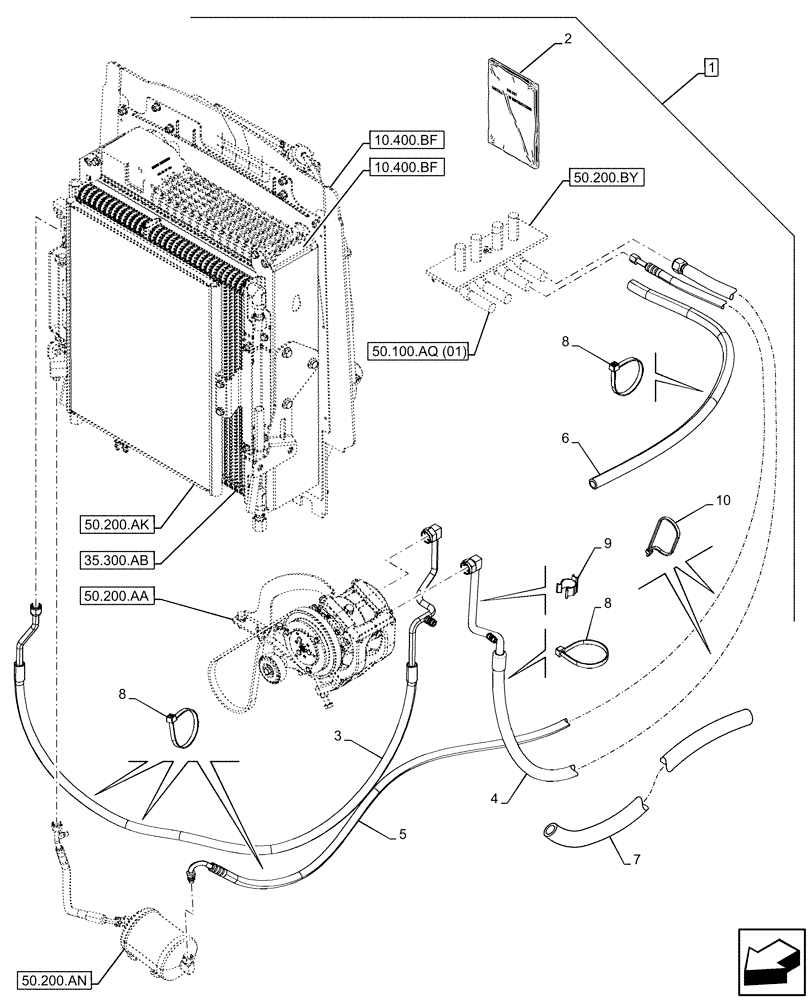

Запчасти Case 580SN WT (88.100.50[01]) - DIA KIT, CAB, AIR CONDITIONER, LINES (88) - ACCESSORIES

1

47699070

CONSTRUCTION DIA

A/C HPCR, Incl 2 - 10

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47699073

INSTRUCTION

1шт.

3

84515234

A/C HOSE,1830mm L

Compressor to Condenser

1шт.

4

84490123

A/C HOSE,2479mm L

ASSY, Cab to Compressor

1шт.

5

84418866

HOSE,8mm ID x 2787mm L

Dryer to Cab

1шт.

6

84522912

HOSE PROTECTION,19.1mm ID x 2670mm L

Conduit, Polypropylene

1шт.

7

47413529

GUARD

Hose

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

46шт.

9

84292413

MOUNTING CLIP,15mm ID

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

20шт.
