Запчасти Case 580SN WT (88.100.35[44]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES

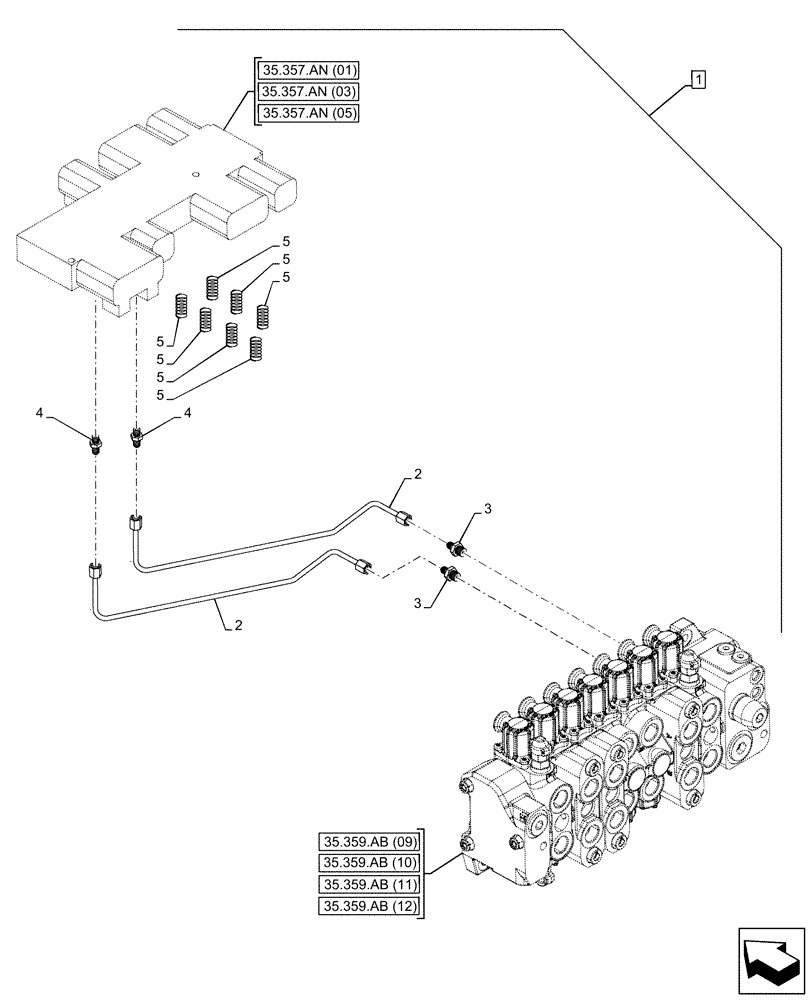

Схема запчастей Case 580SN WT - (88.100.35[44]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES
35.359.ab (10)
4
5
3
5
5
3
1
5
5
5
2
5
4
2
35.359.ab (12)
35.359.ab (11)
35.359.ab (09)
35.357.an (01)
35.357.an (03)
35.357.an (05)

Артикул

Название

Примечание

Количество

1

47593980

CONSTRUCTION DIA

Kit, Dipper Oscillation, Incl 2 - 5

1шт.

2

87594364

HYDRAULIC HOSE,6mm ID x 550mm L

2шт.

3

87594363

DAMPING VALVE

Snubber

2шт.

4

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

2шт.

5

47593938

COMPRESSION SPRING,16.7mm OD x 50.8mm L

8шт.
