Запчасти Case 580SN WT (05.100.03) - CAPACITIES (05) - SERVICE & MAINTENANCE

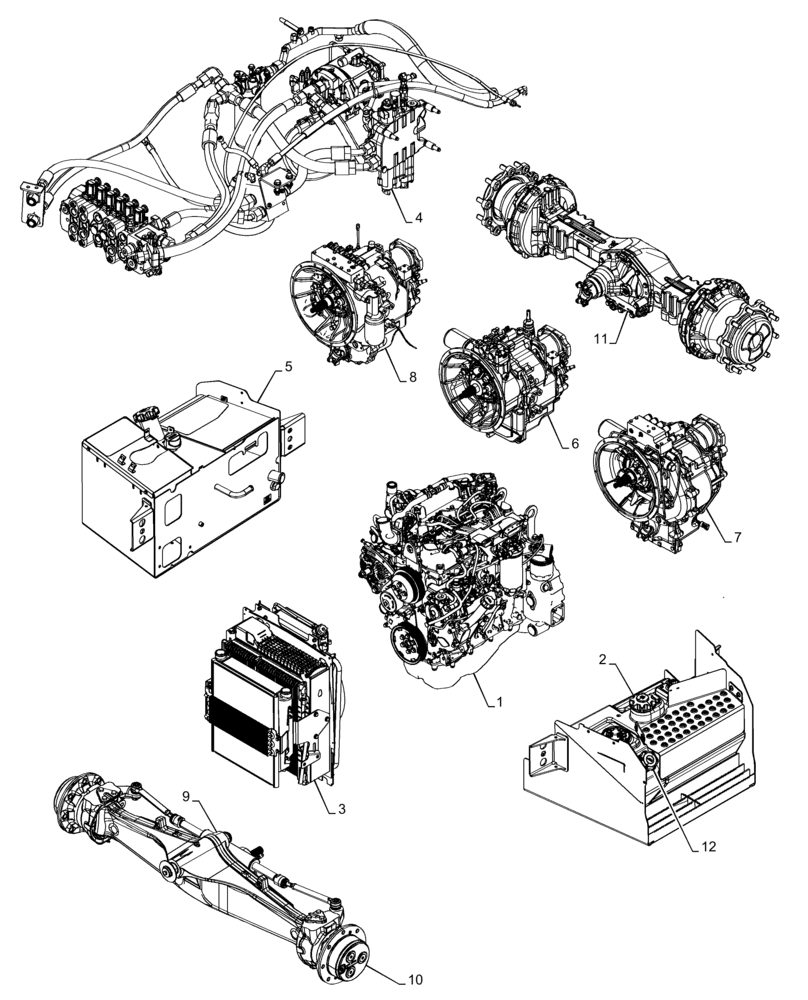

Схема запчастей Case 580SN WT - (05.100.03) - CAPACITIES (05) - SERVICE & MAINTENANCE
1
5
10
8
12
6
3
7
4
11
2
9

Артикул

Название

Примечание

Количество

1

-

Engine Crank Case (Qty in Liters), (8.5 US qt)

8шт.

Recommended Product: CASE AKCELA UNITEK N.1™ SBL CJ-4 Engine Oil (SAE 10W-40)

1шт.

Recommended Product (SCWP) : CASE AKCELA UNITEK N.1™ SSL CJ-4 Engine Oil (SAE 0W-40)

1шт.

2

-

Fuel Tank (Qty in Liters), (35 US Gallons)

132шт.

Recommended Product: ASTM D975 Grade No. 2-D S15 (No. 2 Diesel)

1шт.

3

-

Cooling System W/O Heater (Qty in Liters), (18.3 US qt)

17.3шт.

Recommended Product: 50% CASE AKCELA ACTIFULL™ OT EXTENDED LIFE Coolant + 50% Water

1шт.

3

-

Cooling System W/ Heater (Qty in Liters), (19.0 US qt)

18.0шт.

Recommended Product: 50% CASE AKCELA ACTIFULL™ OT EXTENDED LIFE Coolant + 50% Water

1шт.

4

-

Hydraulic System, Total (Qty in Liters), (130.6 US qt)

123.6шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

4

-

Hydraulic System, Total with Extendahoe (Qty in Liters), (136.6US qt)

129.3шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

5

-

Hydraulic Oil Reservoir W/ Filter Change (Qty in Liters), (55 US qt)

52.4шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

5

-

Hydraulic Oil Reservoir W/O Filter Change (Qty in Liters, (53.4 US qt)

50.5шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

6

-

Powershuttle Transmission, Total (Qty in Liters), (21 US qt)

19.4шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

6

-

Powershuttle Transmission, Refill (Qty in Liters), (14 US qt)

13шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

7

-

Powershift S-Type Transmission, Total (Qty in Liters), (21.9 US qt)

20.7шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

7

-

Powershift S-Type Transmission, Refill (Qty in Liters), (15.1 US qt)

14.3шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

8

-

Powershift H-Type Transmission, Total (Qty in Liters), (19 US qt)

18шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

8

-

Powershift H-Type Transmission, Refill (Qty in Liters), (12 US qt)

11.4шт.

Recommended Product: CASE AKCELA NEXPLORE™ Fluid

1шт.

Recommended Product (SCWP) : CASE AKCELA HY-TRAN® ULTRACTION SSL Fluid

1шт.

9

-

4WD Front Axle Differential (Qty in Liters), Each (9.1 US qt)

8.6шт.

Recommended Product: TUTELA TRANSAXLE Fluid (SAE 80W-140)

1шт.

10

-

4WD Front Axle Hub, Each (Qty in Liters) (1.1 US qt)

1шт.

Recommended Product: TUTELA TRANSAXLE Fluid (SAE 80W-140)

1шт.

11

-

Rear Axle, Differential and Hubs (Qty in Liters) (14.4 US qt)

18.6шт.

Recommended Product: TUTELA TRANSAXLE Fluid (SAE 80W-140)

1шт.

12

-

Diesel Exhaust Fluid (DEF)/ Adblue® Tank (Qty in Liters), (3.6 US Gallons)

13.5шт.

Recommended Product: DEF/Adblue®

1шт.

Выбрано товаров: 47
