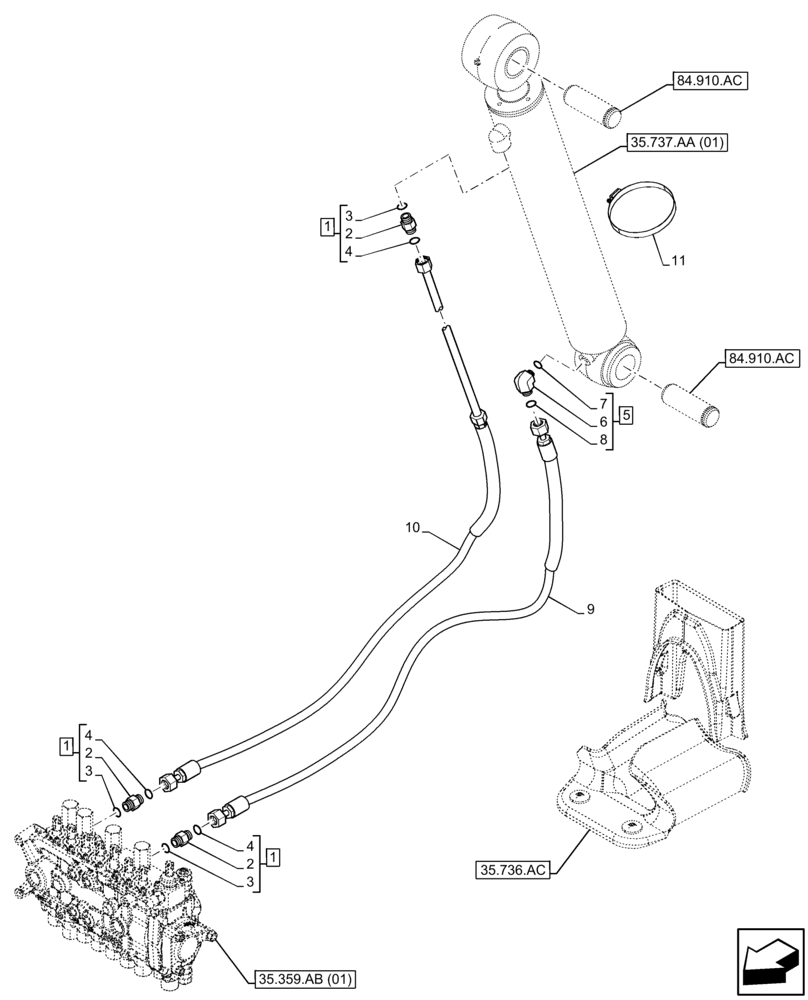

Запчасти Case 580SN WT (35.737.AE) - DIPPER, CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

1

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

3шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

3шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

5

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

84257621

HYDRAULIC HOSE,15.88mm ID x 2073mm L, SAE 100R16

Dipper Cylinder Head

1шт.

10

84287836

HYD TUBE

Dipper Cylinder Rod

1шт.

11

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.
