(35.734.AD[01]) - VAR - 442017 - QUICK COUPLER, VALVE, HYDRAULIC LINE

Запчасти Case 580SN WT (35.734.AD[01]) - VAR - 442017 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

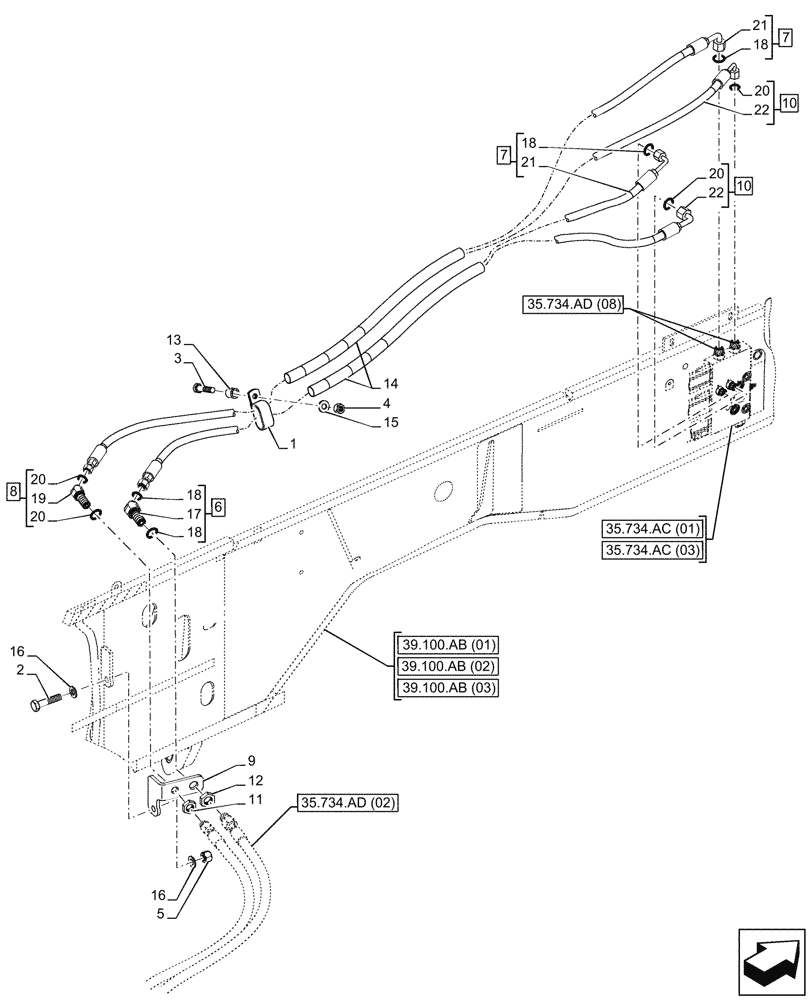

Схема запчастей Case 580SN WT - (35.734.AD[01]) - VAR - 442017 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
39.100.ab (01)
22
18
1
10
6
4
18
16
9
10
12
20
8
2
20
21
20
13
14
5
18
21
3
11
16
19
18
17
20
7
7
15
22
35.734.ac (03)
35.734.ad (02)
35.734.ad (08)
35.734.ac (01)
39.100.ab (02)
39.100.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

2

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

84285335

45 ELBOW,11/16"-16 ORFS

ASSY, Incl 17, 18 (Qty 2)

1шт.

7

84329631

HOSE ASSY.,6.3mm ID x 1594mm L, SAE 100R16 Type S

6.3mm ID x 1594mm L, Coupler Port B, Incl 18 (Qty 1), 21

1шт.

8

84331286

45 ELBOW,9/16"-18 ORFS

ASSY, Incl 19, 20 (Qty 2)

1шт.

9

84332789

BRACKET

1шт.

10

84395678

HOSE ASSY.,6.3mm ID x 1690mm L

Coupler Port A, Incl 20 (Qty 1), 22

1шт.

11

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

12

87010704

BHD LOCK NUT,11/16"-16

1шт.

13

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

14

84576081

FLEXIBLE SHEATH,19mm ID x 24.23mm OD x 945mm L

2шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 6

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

19

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 8

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

21

NSS

NOT SOLD SEPARAT

Hose, Incl in 7

1шт.

22

NSS

NOT SOLD SEPARAT

Hose, Incl in 10

1шт.
