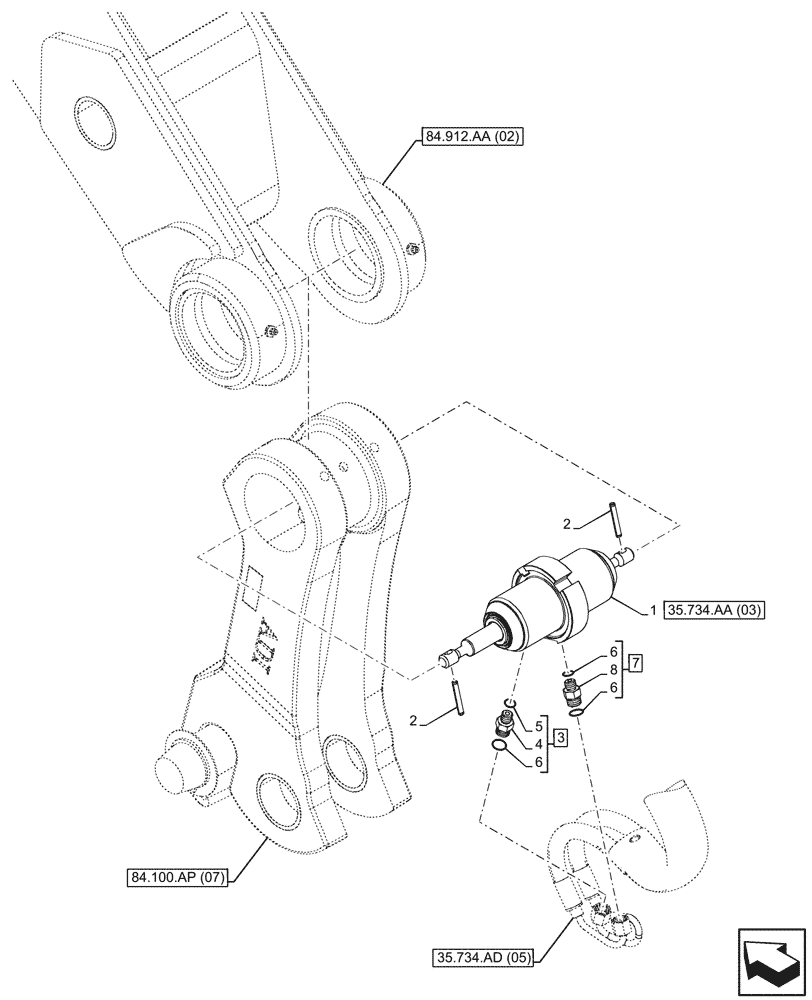

Запчасти Case 580SN WT (35.734.AA[02]) - VAR - 442017 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84270939

HYDRAULIC CYLINDER,Double Acting, 19.1mm Rod, 80.6mm Stroke

ASSY

1шт.

1

84270939R

REMAN-HYD CYLINDER

1шт.

1

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

2

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

3

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 4, 5, 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

7

84265115

REDUCER FITTING

ASSY, Incl 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.
