(35.726.AD[02]) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, SOLENOID VALVE, COMPONENTS

Запчасти Case 580SN WT (35.726.AD[02]) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, SOLENOID VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

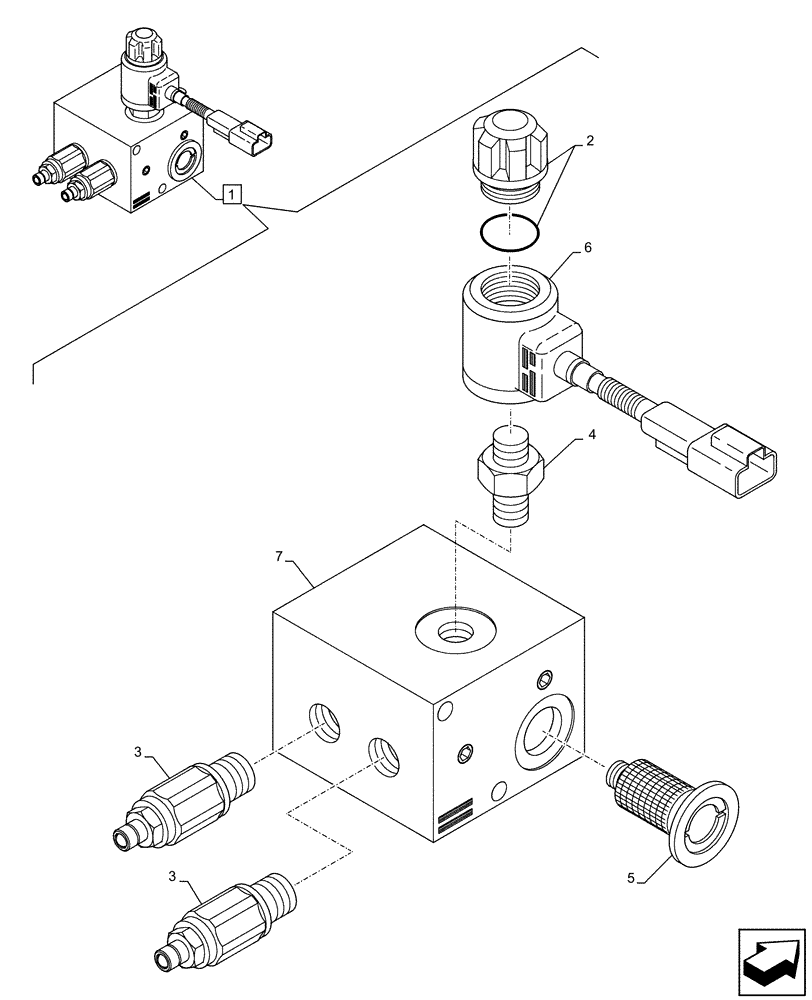

Схема запчастей Case 580SN WT - (35.726.AD[02]) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, SOLENOID VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
5
1
6
3
3
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527720

CONTROL VALVE

ASSY, Heavy Lift, Incl 2 - 7

1шт.

2

84338936

SERVICE KIT

1шт.

3

84338932

VALVE

Heavy Lift Relief

2шт.

4

84545954

SOLENOID VALVE

Power Lift

1шт.

5

84338934

FILTER STRAINER

W/Orifice

1шт.

6

84338935

COIL

Heavy Lift

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
