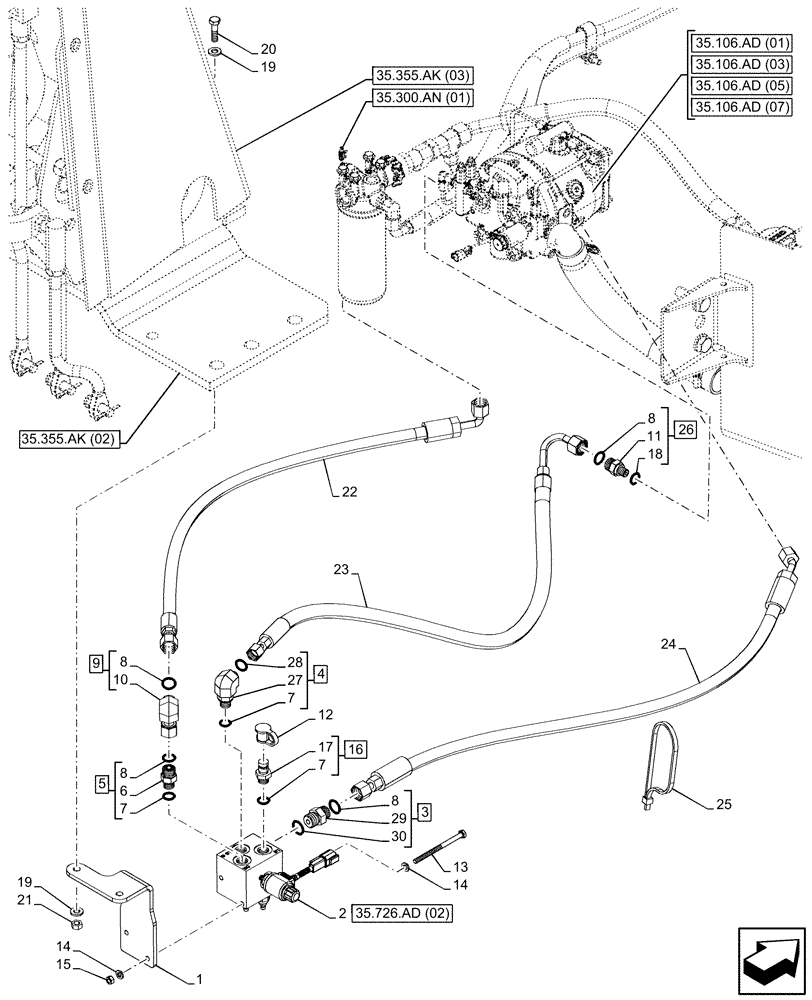

Запчасти Case 580SN WT (35.726.AD[01]) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84483241

BRACKET

Valve Mounting

1шт.

2

84527720

CONTROL VALVE

ASSY, Heavy Lift Mechanical Control

1шт.

3

87672176

HYD CONNECTOR

ASSY, Incl 8 (Qty 1), 29, 30

1шт.

4

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 7 (Qty 1), 27, 28

1шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 6, 7 (Qty 1), 8 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

9

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 8 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

12

H434163

DUST CAP

1шт.

13

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

14

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

16

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 7 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Coupler, Incl in 16

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

84483473

HOSE,10mm ID x 1065mm L, SAE 100R6

1066mm L, Heavy Lift Return

1шт.

23

84540599

HOSE,6.3mm ID x 880mm L, SAE 100R16 Type S

880mm L, Heavy Lift

1шт.

24

84483235

HOSE,10mm ID x 842mm L, SAE 100R16 Type S

842mm L, Heavy Lift

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

26

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

ASSY, Incl 8 (Qty 1), 11, 18

1шт.

27

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

28

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
