Запчасти Case 580SN WT (35.724.AE[02]) - CONTROL, LOADER BUCKET, VARIABLE VOLUME PUMP MODELS (35) - HYDRAULIC SYSTEMS

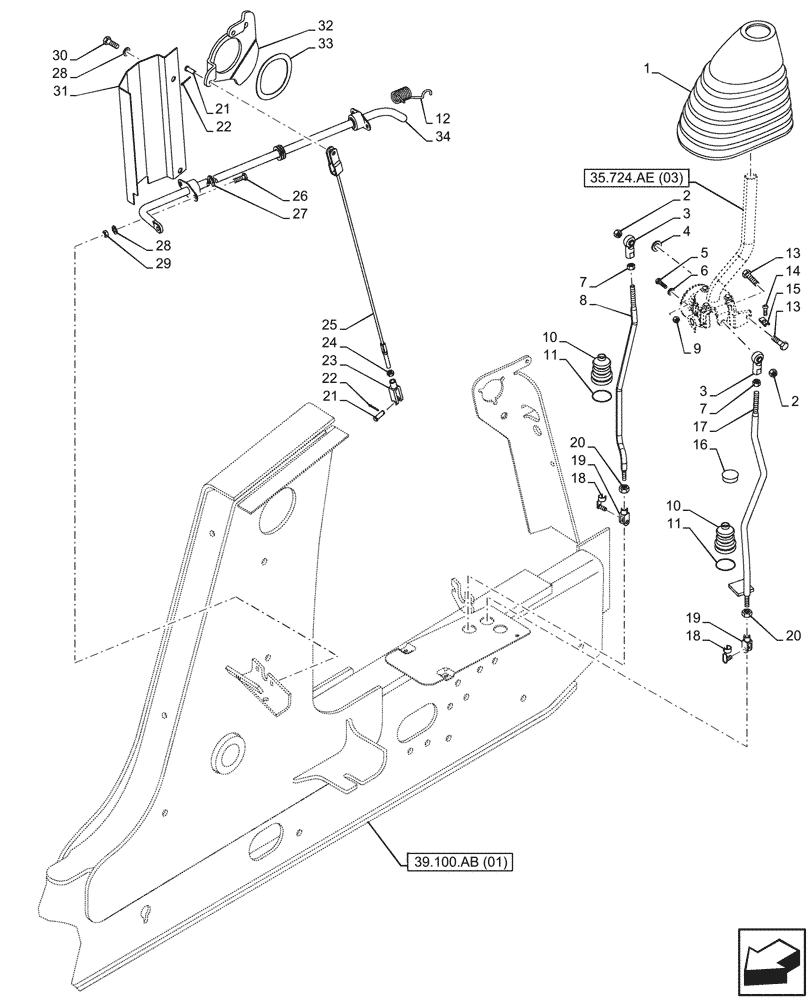

Схема запчастей Case 580SN WT - (35.724.AE[02]) - CONTROL, LOADER BUCKET, VARIABLE VOLUME PUMP MODELS (35) - HYDRAULIC SYSTEMS
39.100.ab (01)
11
20
28
12
27
18
3
10
26
17
21
19
7
33
32
21
13
6
4
9
1
7
34
18
24
10
25
22
2
29
28
23
14
8
31
5
15
2
11
22
30
20
3
19
13
16
35.724.ae (03)

Артикул

Название

Примечание

Количество

1

84498309

BOOT

Loader Control

1шт.

2

232-4246

NUT,3/8"-16, GC

2шт.

3

87382812

BALL JOINT HEAD,3/8" - 24

2шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

5

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

6

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

3шт.

7

425-116

NUT,3/8" - 24, Gr 5

2шт.

8

87663563

THREADED ROD

1шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

10

132931A1

BOOT

2шт.

11

189109A1

SPRING,Compression, 42mm OD

2шт.

12

124721A1

SPRING,Extension, 19mm ID x 61mm L

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

15

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

16

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

17

87663554

THREADED ROD,38"-24 UNF x 483mm L

Loader Control Lift

1шт.

18

87602942

CLEVIS PIN,8 x 16mm Short ZND

2шт.

19

87602941

ADJUSTABLE CLEVIS,M8 x 16mm, Short

2шт.

20

829-4408

NUT,Thin, M8 x 1.25, Cl 05

2шт.

21

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

22

432-612

COTTER PIN,3/32" x 3/4"

2шт.

23

239406A1

CLEVIS,5/16-24"

1шт.

24

425-115

NUT,5/16"-24, G5

1шт.

25

87428645

CABLE,682mm L

1шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

27

D143591

RING, SNAP,12.7mm ID, Ext

2шт.

28

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

30

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

31

139865A1

SHIELD

1шт.

32

84292801

CAM

1шт.

33

137283A1

WAVE WASHER,85.6mm ID x 109.22mm OD x 1.14mm Thk

1шт.

34

87417601

ROD ASSY.

1шт.

Выбрано товаров: 34
