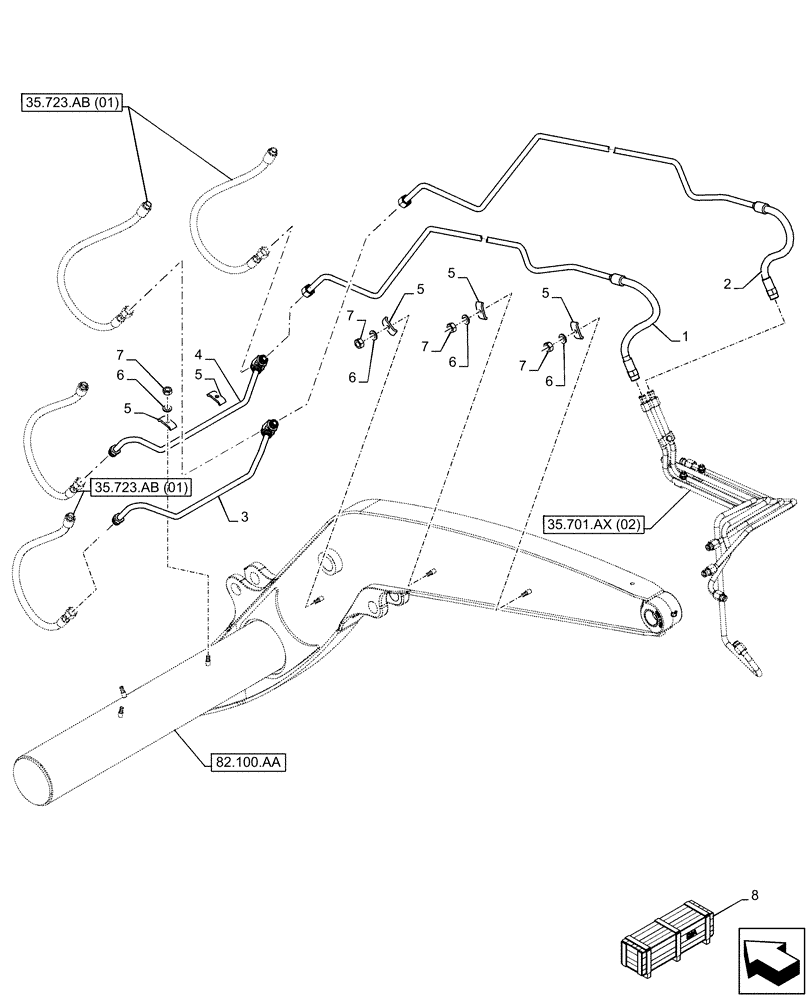

Запчасти Case 580SN WT (35.723.AB[03]) - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84297406

HYD TUBE

Loader Arm Port B

1шт.

2

84297407

HYD TUBE

Loader Arm Port A

1шт.

3

84240497

TUBE

Loader Cross Port B

1шт.

4

84240490

TUBE

Loader Cross Port A

1шт.

5

D138055

CLAMP

5шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

5шт.

7

86500689

NUT,M10 x 1.5, Cl 10

5шт.

8

47542235

CONSTRUCTION DIA

Bucket 82 Inch 4 in 1, Incl 3, 10

1шт.

Valid for 580N, 580SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47540572

CONSTRUCTION DIA

Bucket 93 Inch 4 in 1, Incl 3, 10

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47553020

CONSTRUCTION DIA

Buchet 93 Inch 4 in 1, Incl 3, 10

1шт.

Valid for 580SN WT Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661785

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 5 - 7

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
