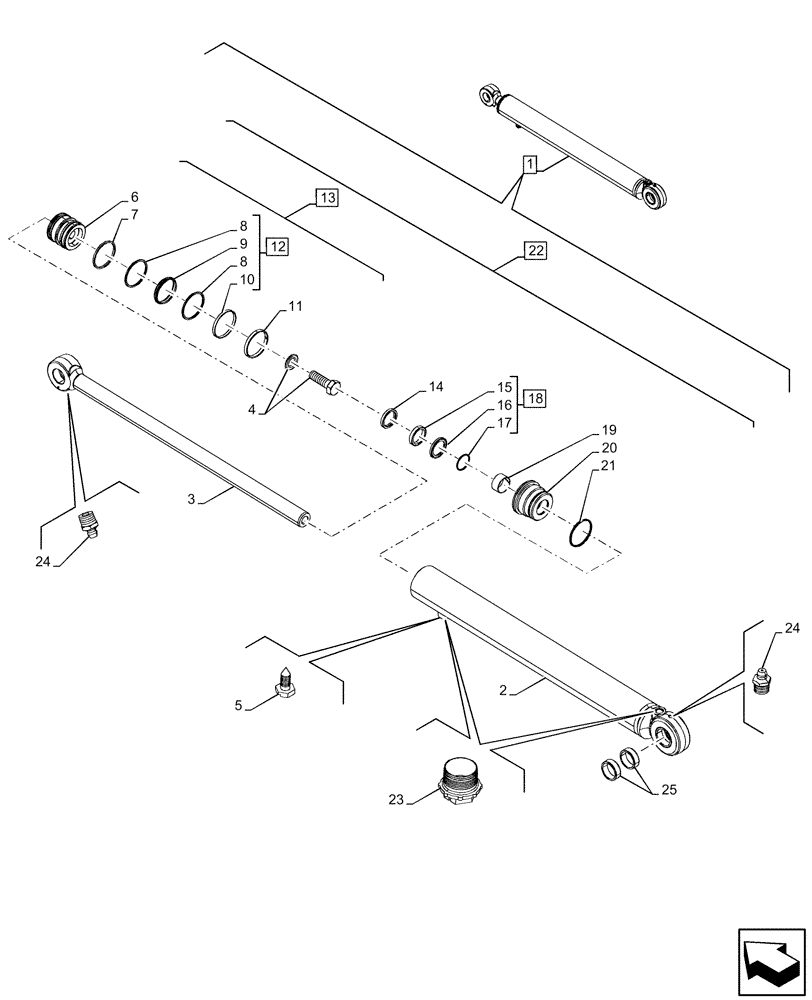

Запчасти Case 580SN WT (35.701.CB[02]) - LIFT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47697003

LIFT CYLINDER,88.90mm Bore x 47.60 Rod Dia x 1055mm Closed L

ASSY, Incl 2 - 25

1шт.

1

47697003R

REMAN-HYD CYLINDER

1шт.

1

47697003C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

84238632

ROD,47.6mm OD x 972.8mm L

1шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

47696997

PISTON

1шт.

7

238799A1

SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 12

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Incl in 12

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Incl in 12

1шт.

11

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

12

87715783

SEAL,76.45mm ID x 88.9mm OD

ASSY, Incl 8, 9, 10

1шт.

13

47696998

PISTON ASSY

ASSY, Incl 6, 7, 11, 12

1шт.

14

G103481

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Incl in 18

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, Incl in 18

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 18

1шт.

18

84212408

SEAL PACKAGE

ASSY, Incl 15 - 17

1шт.

19

G103482

BEARING,1.85mm ID x 47.75mm OD x 25.15 W

1шт.

20

84238636

GLAND

1шт.

21

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

1шт.

22

47696999

REPAIR KIT

ASSY, Incl 4, 6 - 21

1шт.

23

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.
