(35.701.CB[01]) - LIFT CYLINDER

Запчасти Case 580SN WT (35.701.CB[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

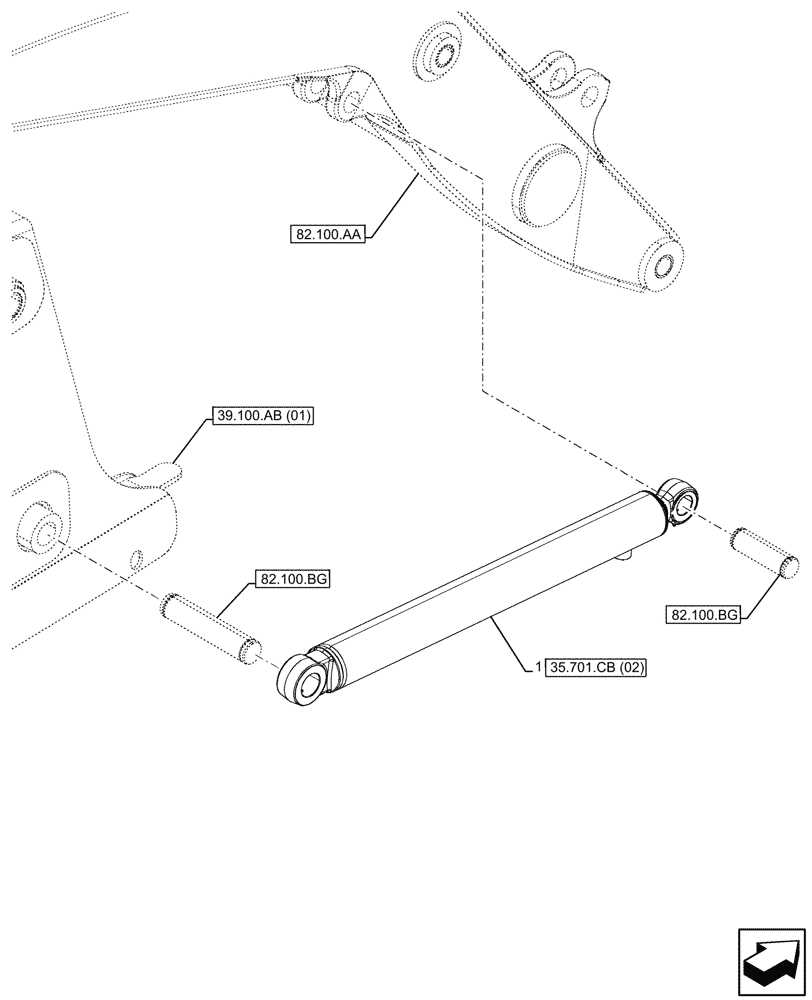

Схема запчастей Case 580SN WT - (35.701.CB[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
82.100.aa
1
35.701.cb (02)
82.100.bg
82.100.bg
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47697003

LIFT CYLINDER,88.90mm Bore x 47.60 Rod Dia x 1055mm Closed L

2шт.

1

47697003R

REMAN-HYD CYLINDER

2шт.

1

47697003C

CORE-HYD CYLINDER

Return Number

2шт.
