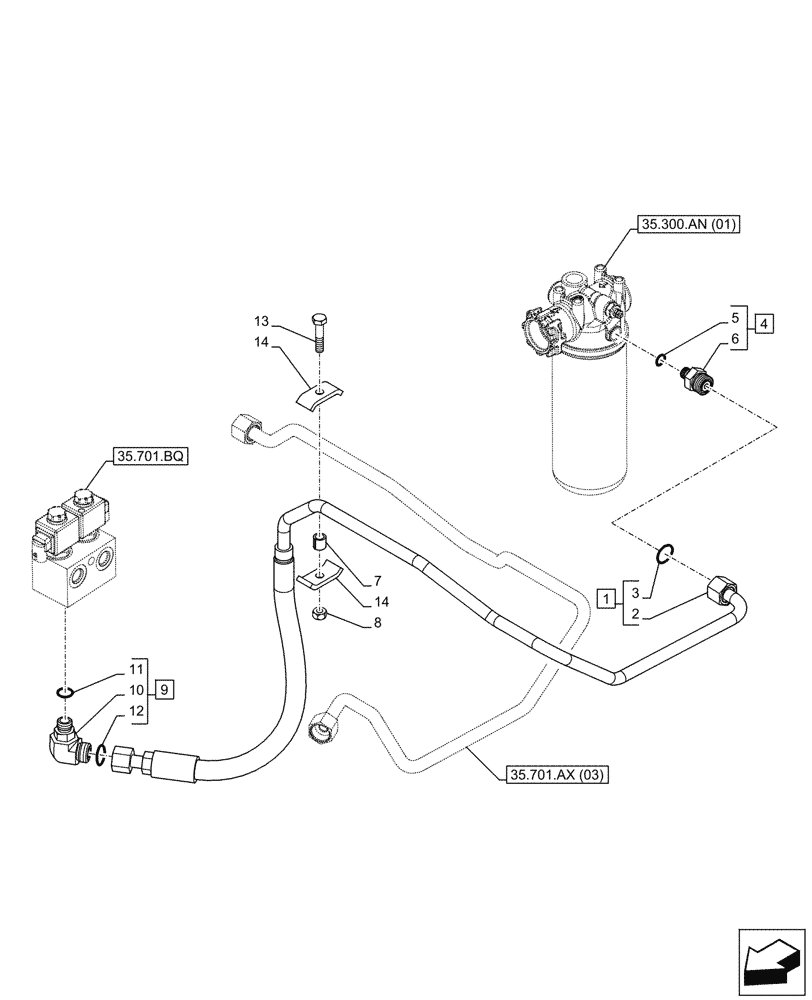

Запчасти Case 580SN WT (35.701.BR[07A]) - VAR - 423090, 423098 - RIDE CONTROL, VALVE, HYDRAULIC LINE, TANK - BEGIN YR 29-OCT-2016 (35) - HYDRAULIC SYSTEMS

1

48033286

HYD TUBE

ASSY, Ride Control to Tank, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

ASSY, Incl 5 (Qty 1), 6

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

14

D138055

CLAMP

2шт.
