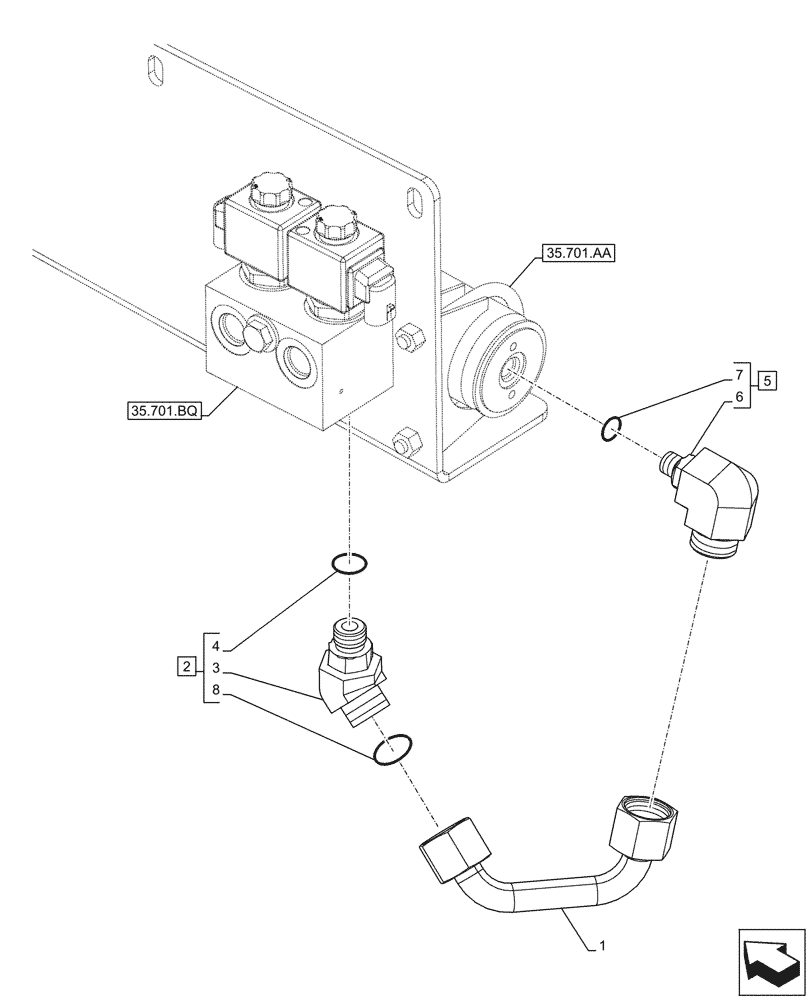

Запчасти Case 580SN WT (35.701.AC[01A]) - VAR - 423090, 423098 - RIDE CONTROL, ACCUMULATOR, HYDRAULIC LINE - BEGIN YR 29-OCT-2016 (35) - HYDRAULIC SYSTEMS

1

48046062

HYD TUBE

Ride Control Valve to Accumulator

1шт.

2

87530403

ELBOW

ASSY, Incl 3, 4, 8

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
