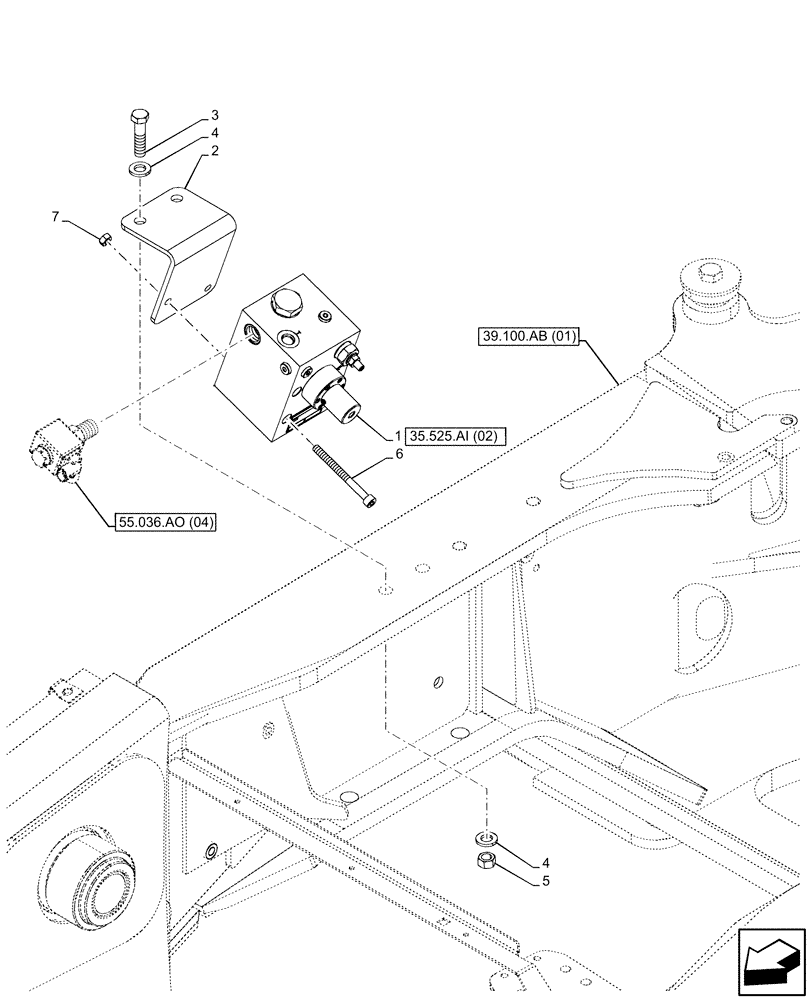

Запчасти Case 580SN WT (35.525.AI[05]) - VAR - 423083 - AUXILIARY CONTROL VALVE, OPTIONAL EQUIPMENT (35) - HYDRAULIC SYSTEMS

1

84247109

VALVE

Open Center Uni-Aux

1шт.

2

84257782

BRACKET

1шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

5

337475

NUT,M12, Cl 10

2шт.

6

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.
