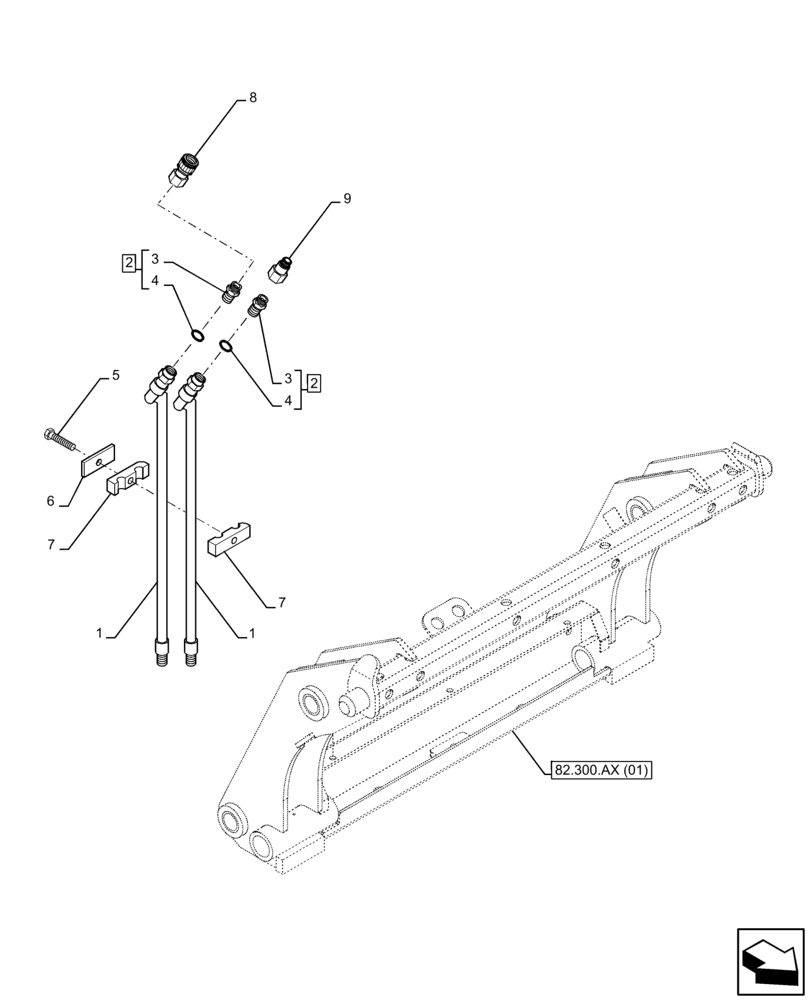

Запчасти Case 580SN WT (35.525.AD[02]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

84518949

HYDRAULIC HOSE,16mm ID x 1016mm L

Auxiliary Hydraulics

2шт.

2

84523391

FITTING,3/8" ID, 3/8" OD

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

6

87493782

PLATE

1шт.

7

87483067

CLAMP

1шт.

8

86537745

COUPLING, QUICK, FEM,27mm ID

1шт.

9

86537746

QUICK MALE COUPLING,27mm OD, 1.062 - 12" OD

1шт.
