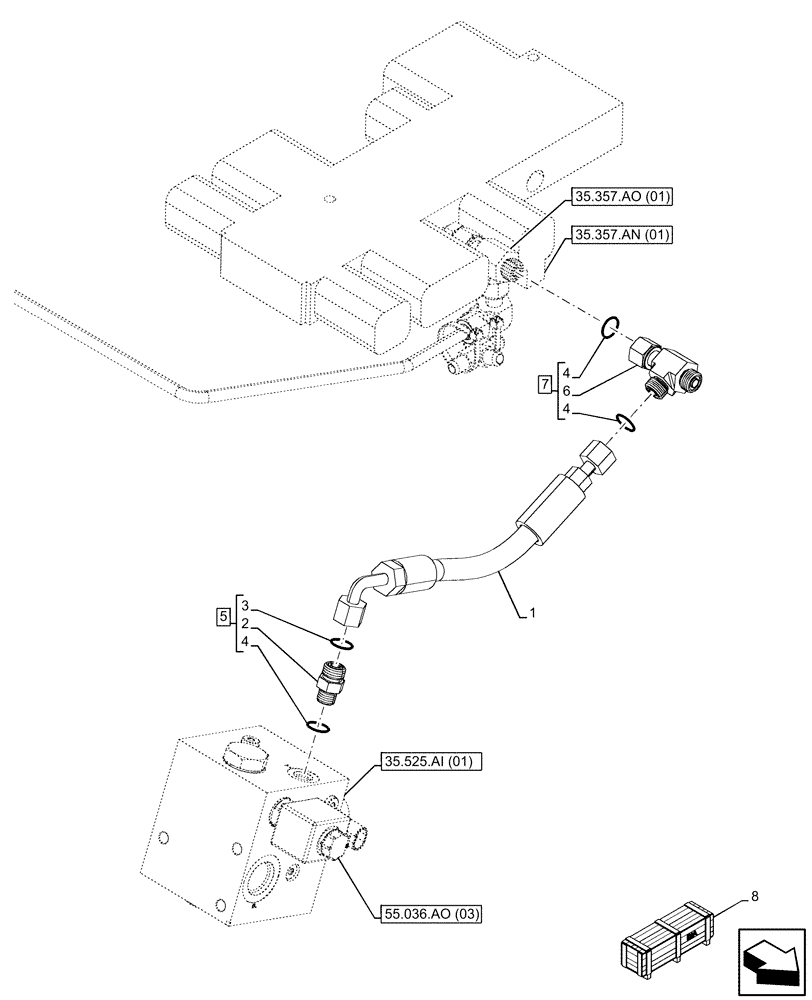

Запчасти Case 580SN WT (35.525.AA[20]) - VAR - 747662, 423084 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

1

84259315

HOSE ASSY.,10mm ID x 288mm L

Backhoe Aux Return to Tank

1шт.

2

NSS

NOT SOLD SEPARAT

Connnector, Incl in 5

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY , Incl 2 - 4 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Union, Incl in 7

1шт.

7

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 4 (Qty 2), 6

1шт.

8

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47358915

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Standard Dipper, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47357827

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Standard Dipper, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47359725

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47359953

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
