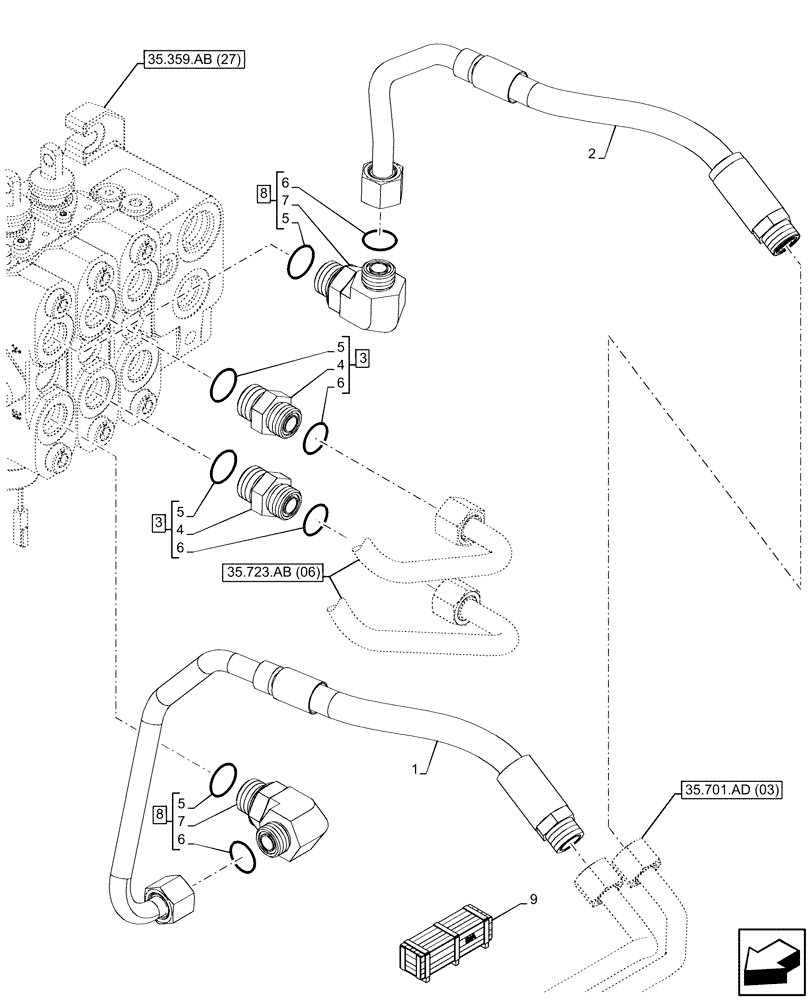

Запчасти Case 580SN WT (35.359.AE[08]) - VAR - 747864 - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

84255714

TUBE

4N1, 295mm

1шт.

2

84281124

TUBE

4N1 Port A, 310mm

1шт.

3

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

8

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

ASSY, 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

2шт.

9

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1, 2, 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47661818

CONSTRUCTION DIA

3 Spool, Pilot Control, Standard Transmission, Incl 1, 2, 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
