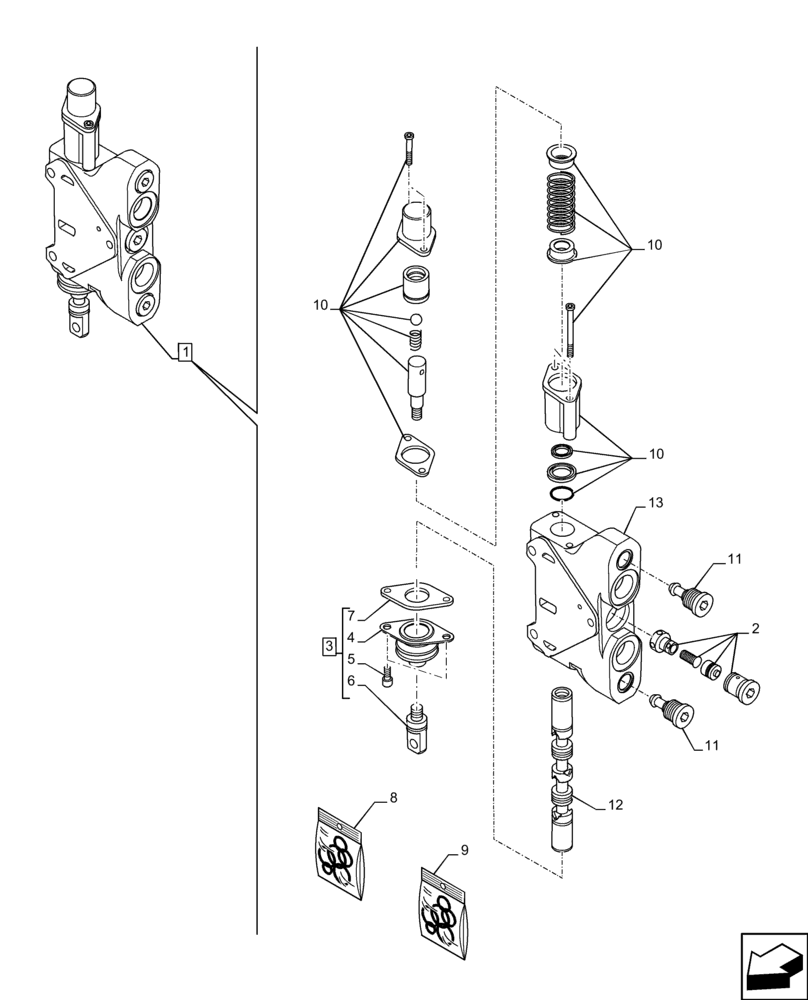

Запчасти Case 580SN WT (35.359.AB[35]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, LOADER, VALVE SECTION (35) - HYDRAULIC SYSTEMS

1

84295097

HYD VALVE SECTION

Loader Lift, ASSY, Incl 2 - 13

1шт.

1

84295097R

REMAN-HYD VALVE

Loader Lift, ASSY, Incl 2 - 13

1шт.

1

84295097C

CORE-VALVE HYD

Core Return Number

1шт.

2

47422242

COMPENSATOR

1шт.

3

85824278

KIT

Operating, Incl 4 - 7

1шт.

4

85820130

BOOT

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

2шт.

6

NSS

NOT SOLD SEPARAT

Spool, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

8

87617657

O-RING KIT

1шт.

9

85825473

SEAL KIT

1шт.

10

87558870

KIT

Operation

1шт.

11

84354124

HYD VALVE SECTION

2шт.

12

NSS

NOT SOLD SEPARAT

Spool, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
