(35.359.AB[31]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL

Запчасти Case 580SN WT (35.359.AB[31]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL (35) - HYDRAULIC SYSTEMS

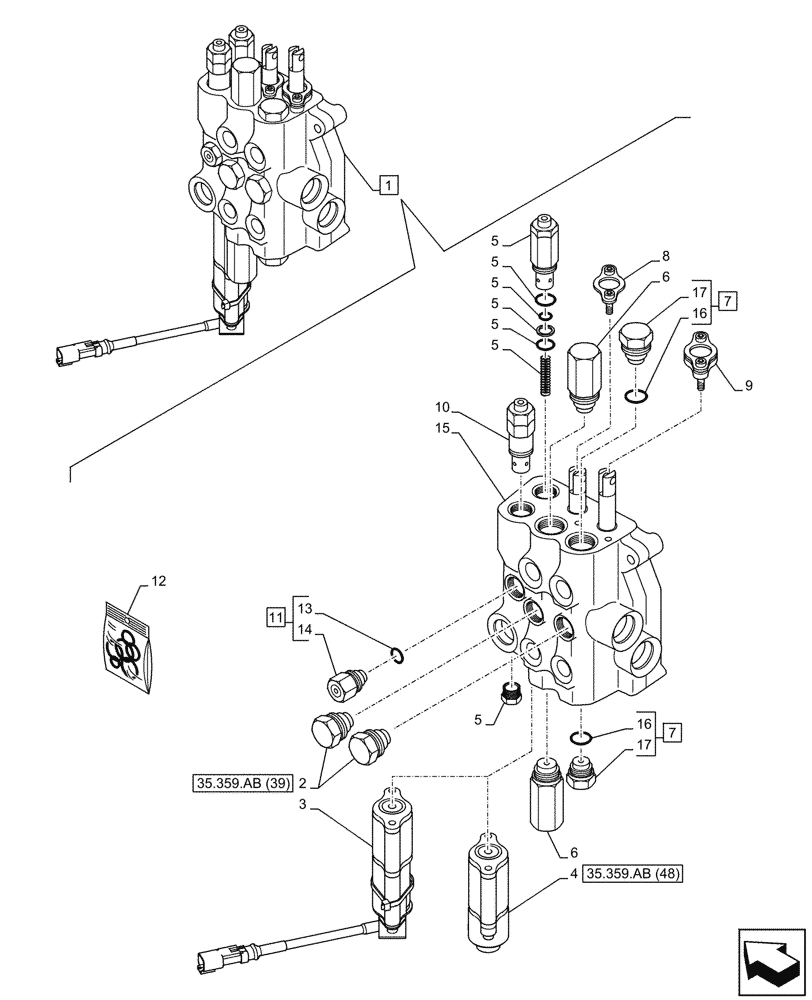

Схема запчастей Case 580SN WT - (35.359.AB[31]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL (35) - HYDRAULIC SYSTEMS
35.359.ab (39)
8
9
5
4
16
7
5
5
16
12
11
3
5
2
7
1
14
15
6
13
17
17
10
5
5
6
5
35.359.ab (48)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84217762

HYDRAULIC VALVE

Loader 2 Spool With Full Flow Priority, ASSY, Incl 2 - 17

1шт.

2

87426238

VALVE, CHECK

ASSY

2шт.

3

84296814

KIT

RTD End Group

1шт.

4

87426227

DETENT

ASSY

1шт.

5

84296863

KIT

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Incl 16, 17

2шт.

8

84315193

SEAL

1шт.

9

84327674

KIT

Seal Plate

1шт.

10

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

11

163410

PLUG,1-1/16" - 12 ORB

ASSY, Incl 13, 14

1шт.

12

84296788

SEAL KIT

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

16

87455580

O-RING KIT

Incl in 7

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

1шт.
