(35.359.AB[29]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING

Запчасти Case 580SN WT (35.359.AB[29]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

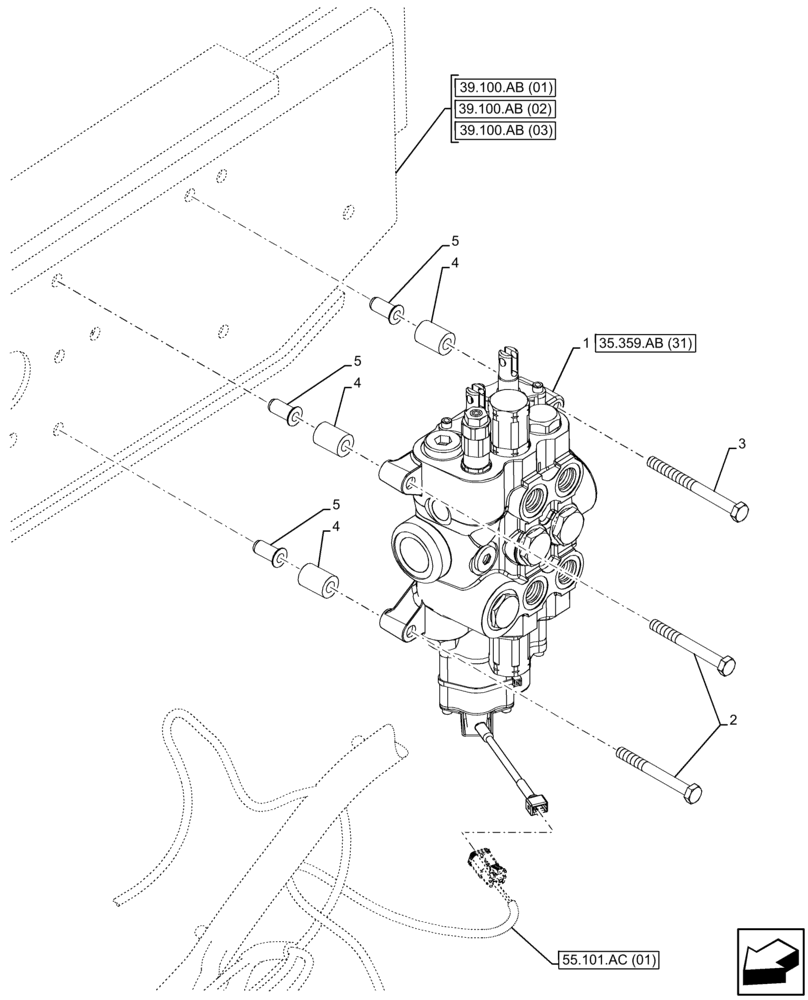

Схема запчастей Case 580SN WT - (35.359.AB[29]) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
39.100.ab (02)
4
1
4
4
35.359.ab (31)
5
39.100.ab (03)
55.101.ac (01)
3
39.100.ab (01)
2
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84217762

HYDRAULIC VALVE

Loader 2 Spool With Full Flow Priority, ASSY

1шт.

2

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

3

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 5
