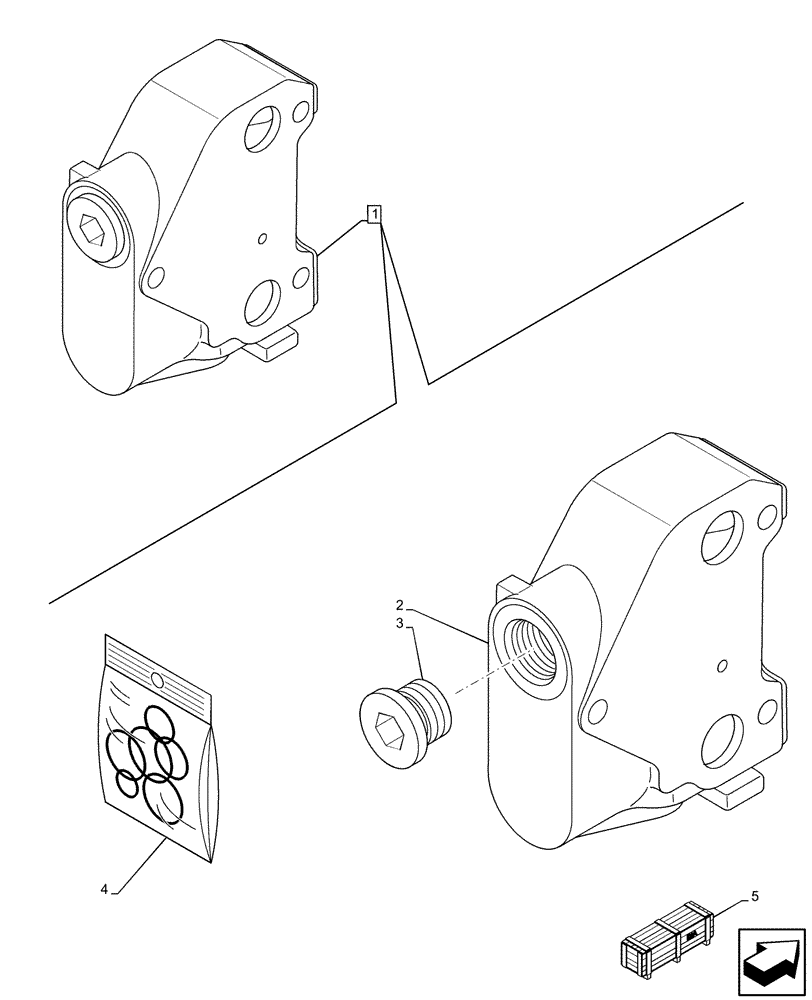

Запчасти Case 580SN WT (35.359.AB[23]) - BACKHOE CONTROL VALVE, OUTLET SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

85811915

HYD VALVE SECTION

Outlet, ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85811921

PLUG

1шт.

4

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

5

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
