(35.359.AB[20]) - BACKHOE CONTROL VALVE, STABILIZER SECTION, COMPONENTS

Запчасти Case 580SN WT (35.359.AB[20]) - BACKHOE CONTROL VALVE, STABILIZER SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

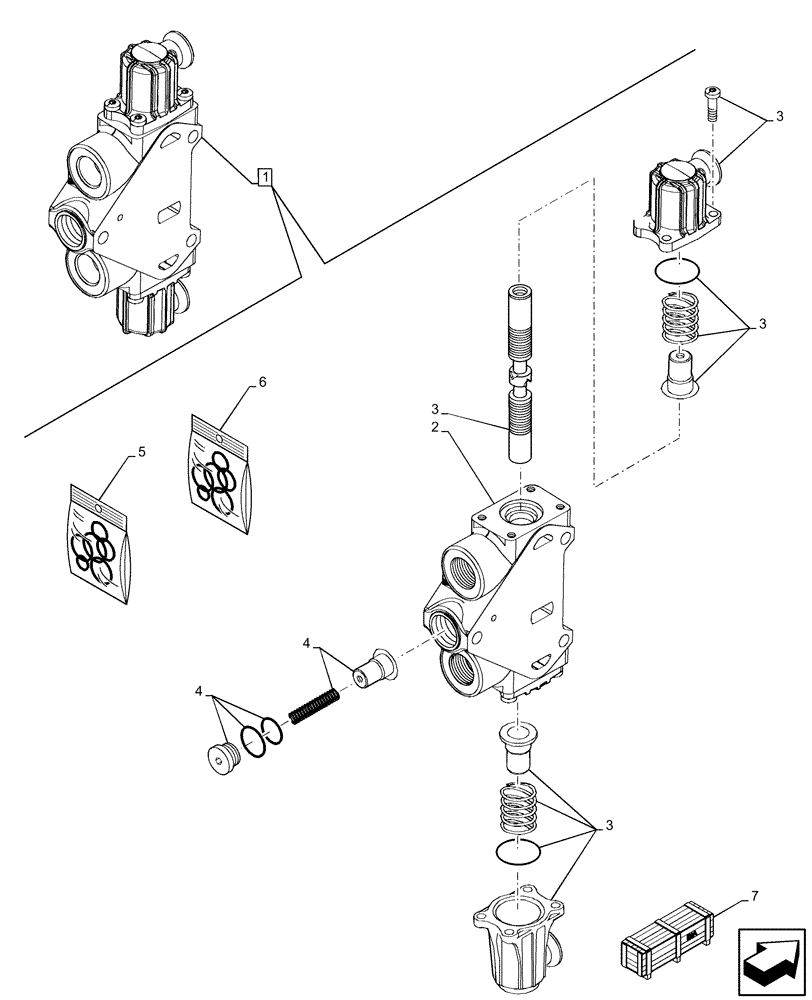

Схема запчастей Case 580SN WT - (35.359.AB[20]) - BACKHOE CONTROL VALVE, STABILIZER SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS
5
7
4
3
6
3
3
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84157939

HYD VALVE SECTION

ASSY, Stabilizer, Incl 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84157941

COMPENSATOR

1шт.

5

85825473

SEAL KIT

1шт.

6

87617657

O-RING KIT

1шт.

7

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
