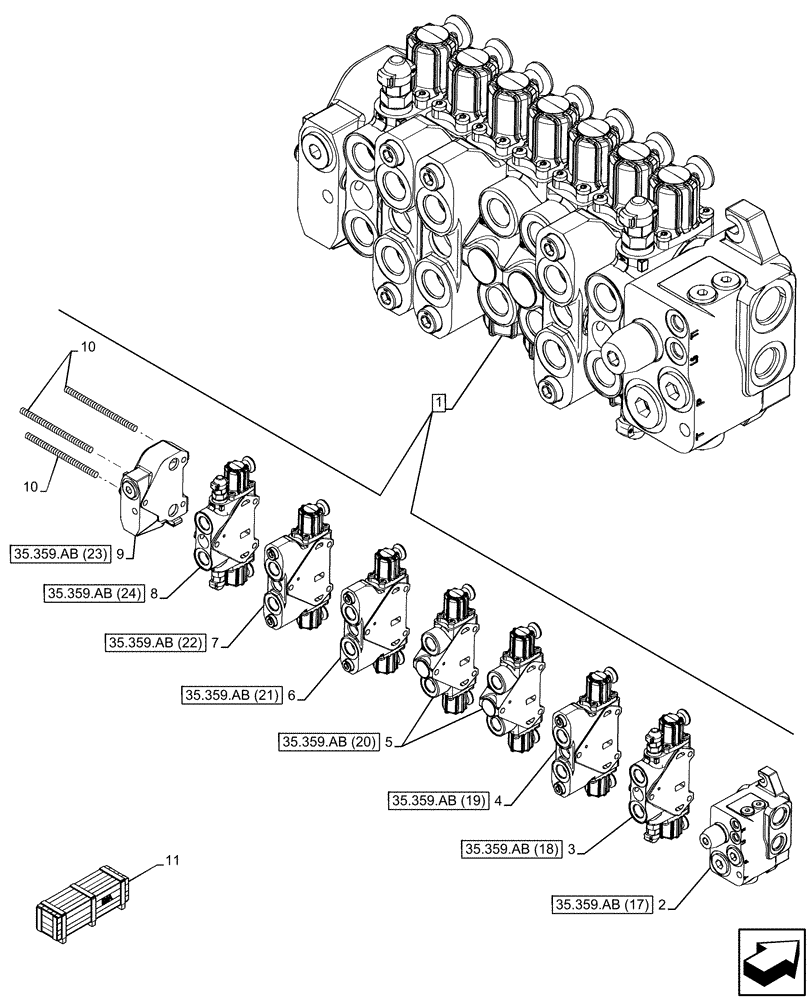

Запчасти Case 580SN WT (35.359.AB[14]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, STANDARD DIPPER, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

84551842

CONTROL VALVE

ASSY, Incl 2 - 10

1шт.

Backhoe Control Valve, 7-Spool, with STD Dipper and Pilot Controls

1шт.

2

84278712

HYD VALVE SECTION

Inlet, ASSY

1шт.

3

84586031

HYD VALVE SECTION

Swing, ASSY

1шт.

4

84278714

HYD VALVE SECTION

Boom, ASSY

1шт.

4

84278714R

REMAN-HYD VALVE

Reman Boom, ASSY

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

Stabilizer, ASSY

2шт.

6

84278710

HYD VALVE SECTION

Dipper, ASSY

1шт.

7

84278702

HYD VALVE SECTION

Bucket, ASSY

1шт.

8

84278691

HYD VALVE SECTION

BI-DIR Pilot, ASSY

1шт.

9

85811915

HYD VALVE SECTION

Outlet, ASSY

1шт.

10

87751102

BOLT

3шт.

11

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 8, 10

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 8, 10

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47661908

CONSTRUCTION DIA

Uni-Aux to Combo, Pilot Control, Standard Dipper, Incl 8, 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
