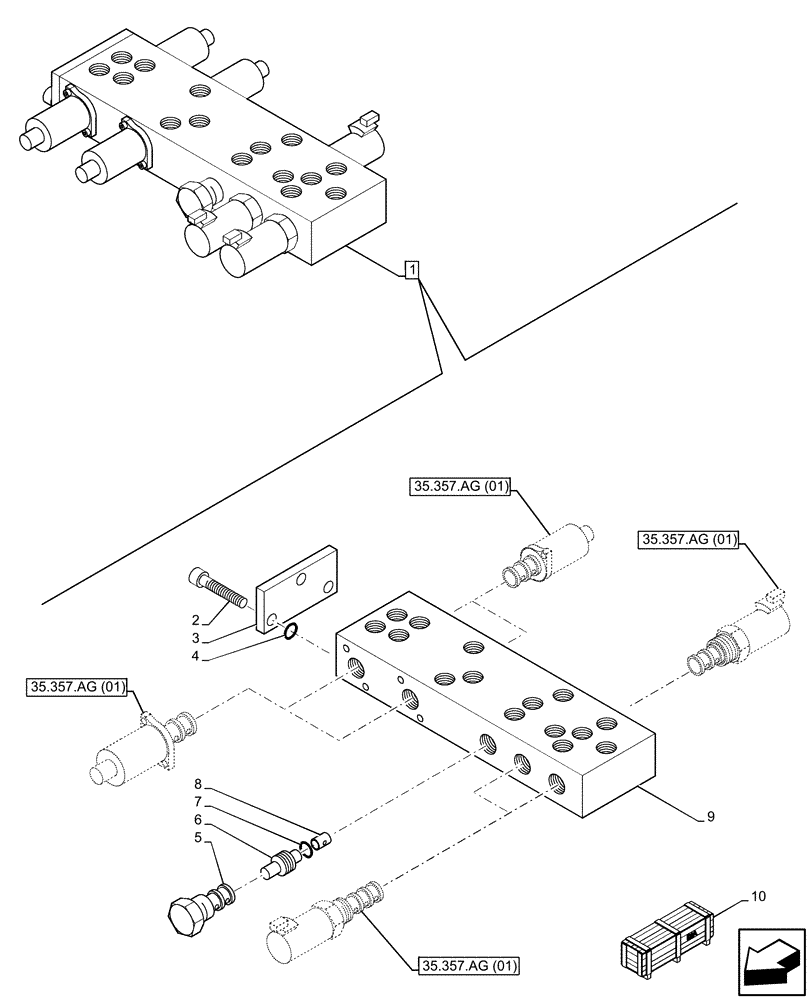

Запчасти Case 580SN WT (35.357.AN[02]) - 6-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

47765052

HYDRAULIC VALVE

ASSY, Proportional Pilot Pressure, Incl 2 - 9

1шт.

See Hydraulic Valve Components also in Figure 35.357.AG (01)

1шт.

2

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

3шт.

3

85827991

PLATE

1шт.

4

85827999

SEAL KIT

1шт.

5

47761898

VALVE, PRESSURE CONT

Fixed Pressure Reducing

1шт.

6

85827992

CHECK VALVE

1шт.

7

85828003

O-RING,1mm Thk x 9mm ID

1шт.

8

85828005

ORIFICE

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

10

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
