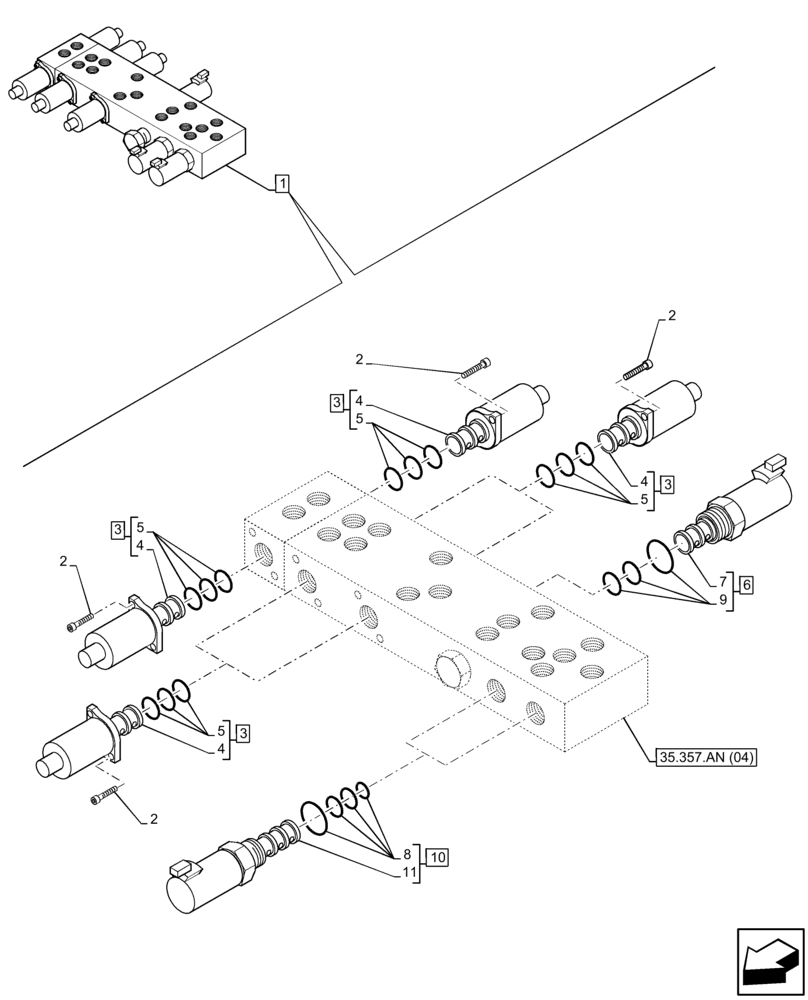

Запчасти Case 580SN WT (35.357.AG[02]) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID (35) - HYDRAULIC SYSTEMS

1

47765051

PILOT VALVE

ASSY, Pilot Pressure, Incl 2 - 11

1шт.

2

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

12шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 4 (Qty 1), 5 (Qty 1)

6шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract PWM, Extendahoe Extend PWM

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

6шт.

5

85828000

SEAL KIT

6шт.

6

85827994

SOLENOID VALVE

ASSY, 3W-2P, Incl 7, 9

1шт.

Joystick Enable Solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

1шт.

8

85828002

SEAL KIT

2шт.

9

85827998

SEAL KIT

1шт.

10

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 8 (Qty 1), 11 (Qty 1)

2шт.

Pattern Change Solenoids

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.
