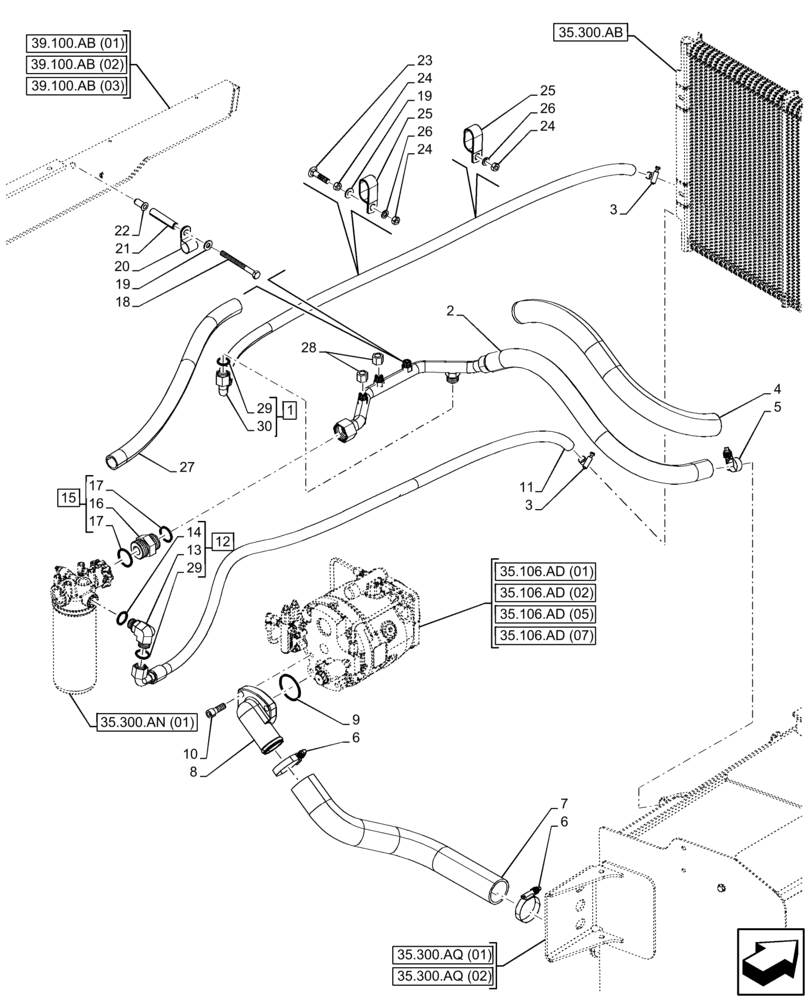

Запчасти Case 580SN WT (35.106.AO[01]) - OIL PUMP, LINE, FITTING (35) - HYDRAULIC SYSTEMS

1

84514722

HOSE ASSY.,16mm ID x 1345mm L

Cooler Return, ASSY, Incl 29 (Qty 1), 30

1шт.

2

47497777

HYD TUBE

Manifold Return, 760mm

1шт.

3

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

2шт.

4

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

5

277678A1

CLAMP,Constant Torque 1 1/8 Inch

1шт.

6

259044A1

CLAMP

2шт.

7

87729268

HOSE,50.800 mm ID x 421.50 mm, SAE 30R7

Pump Suction

1шт.

8

87727923

FLANGE

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

3шт.

11

84326090

HOSE ASSY.,16mm ID x 1857mm L

Cooler Supply

1шт.

12

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 13, 14, 29 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

18

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

20

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

21

84256840

SPACER,11mm ID x 15.8mm OD x 74mm L

1шт.

22

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

23

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

25

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

28

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 1

1шт.
