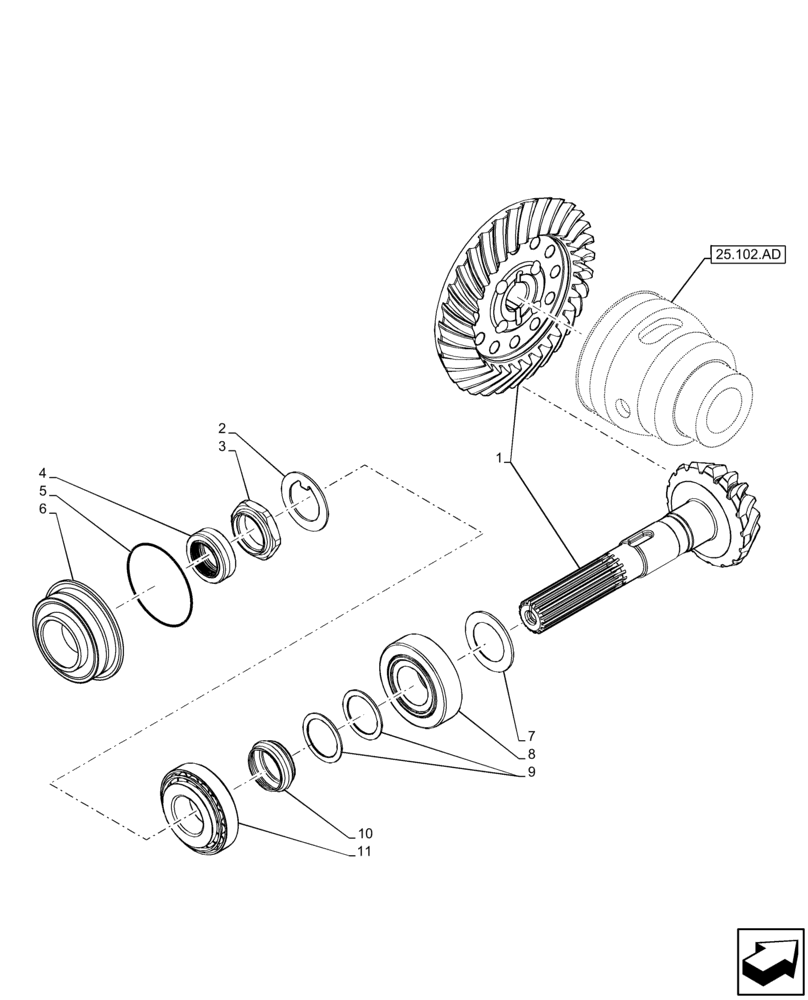

Запчасти Case 580SN WT (25.102.AC) - FRONT AXLE, BEVEL GEAR, 4WD (25) - FRONT AXLE SYSTEM

1

84299355

GEAR SET

Bevel pinion

1шт.

2

84366909

LOCK WASHER,40.85mm ID x 61.75mm OD x 2mm Thk

1шт.

3

84274691

NUT,M40 x 1.5

1шт.

4

84258508

SEAL,35mm ID x 52mm OD x 18.2mm Thk

Oil 35 x 52 x 18.5mm

1шт.

5

638-54825

O-RING,3.55mm Thk x 82.5mm ID, Cl 5, 75 Duro

1шт.

6

84318880

HOUSING

Bevel Pinion

1шт.

7

84299343

WASHER,41.5mm ID x 63mm OD x 2.5mm Thk

1шт.

8

84299345

ROLLER BEARING,41.28mm ID x 90mm OD x 30mm L

1шт.

9

84311242

SPACER,40.45mm ID x 52mm OD x 1.65mm L

40.45 x 52.0 x 1.65mm

2шт.

10

84299341

SLEEVE,42.15mm ID x 50.5mm OD x 18.5mm L

42 x 18.50mm

1шт.

11

84557103

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

1шт.
