(90.120.090) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION, CLOTH, SWIVEL PIVOT, COMPONENTS

Запчасти Case 580SN WT (90.120.090) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION, CLOTH, SWIVEL PIVOT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

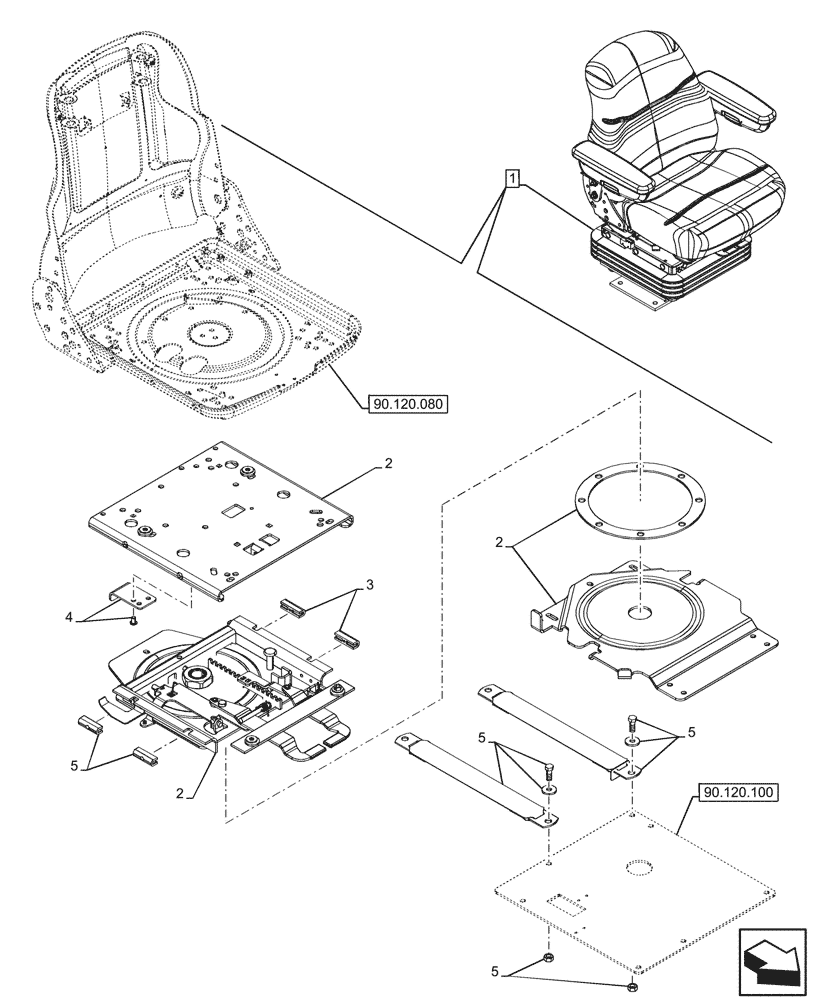

Схема запчастей Case 580SN WT - (90.120.090) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION, CLOTH, SWIVEL PIVOT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.100
4
5
5
5
3
2
1
2
2
5
90.120.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47946002

DRIVER SEAT

ASSY, Cloth, Gray Fabric, Incl 2 - 5

1шт.

See also Driver Seat Components in Figures 55.512.250, 90.120.080, 90.120.100

1шт.

2

87308131

SEAT ACCESSORY

Swivel

1шт.

3

300680A1

KIT

Slide Puck

1шт.

4

84174986

BRACKET

Front Stop

1шт.

5

87308128

SEAT ACCESSORY

Tether Belt Service

1шт.

Выбрано товаров: 6
